8 m tapered aluminium flagpole, KIT, Ø 135/76, C-rail

8 m tapered aluminium flagpole, KIT, Ø 135/76, C-rail

8 m tapered aluminium flagpole, KIT, Ø 135/76, C-rail
Show reviews »
Quality seals and awards
Produktdetails

Key information at a glance

Item no. 8120.28
Hoisting typeInternal halyard
Pole shapetapered
MaterialAluminium
Height8 m
Advice by phone
Our hotline is available Mon–Thu 7:30am–5pm and Fri until 12:30pm: Our hotline number
Freight delivery to Germany from €98
Exact price by postcode in the basket · volume discounts on multiple poles
Volume discount on flagpoles from 3 units · details
from 3−2 % from 6−3 % from 9−4 % from 12−5 % from 15−6 % from 20−7 % from 25−8 %
Applies to poles only, delivered to the same unloading point and the same customer. The discount is deducted automatically in the basket.
Your price
net € 622,00 € 740,18
incl. VAT plus Freight costs
Delivery time approx. 10–15 working days
Order the accessories you need at the same time

The ground socket is not included. It is set into the concrete foundation – after which the pole is simply inserted.

Centring sleeve for conical aluminium flagpoles, Ø 135 mm, without anti-twist and remo Centring sleeve for conical aluminium flagpoles, Ø 135 mm, without anti-twist and remo
+ 90,44 €
Add to basket now
Response usually within 1 hour (Mon–Fri) · no obligation & free of charge
5-year warranty
Purchase on account for public authorities & municipalities
Buyer protection & secure payment
Payment methods: Visa Mastercard girocard PayPal Klarna Wero
8 m tapered aluminium flagpole, KIT, Ø 135/76, C-rail
8 m tapered aluminium flagpole, KIT, Ø 135/76, C-rail Item no. 8120.28
– incl. VAT · incl. accessories
  • Wind-stable, torsion-resistant construction for permanent outdoor use
  • Anodised aluminium – corrosion-free, UV- and weather-resistant
  • 5-year warranty · Made in Germany
  • As a complete set: ground socket & accessories can be ordered with it

8 m tapered aluminium flagpole, KIT, Ø 135/76, C-rail has the item number 8120.28 and is characterised by nominal height 8 m, internal halyard, tapered design. The entry-level price is 740,18 € incl. VAT.

With 8 m of visible height above ground, the pole remains highly visible even across larger commercial sites and car parks. Portrait flags of between 400 and 550 cm in length suit this pole; in landscape format, sizes around 150 × 300 cm work well. The pole is installed in a ground socket cast in concrete; the stated 8 m remain visible above the foundation. You will find the matching foundation plan in the „Instructions“ tab. The internal halyard runs protected inside the pole and makes unauthorised lowering of the flag more difficult.

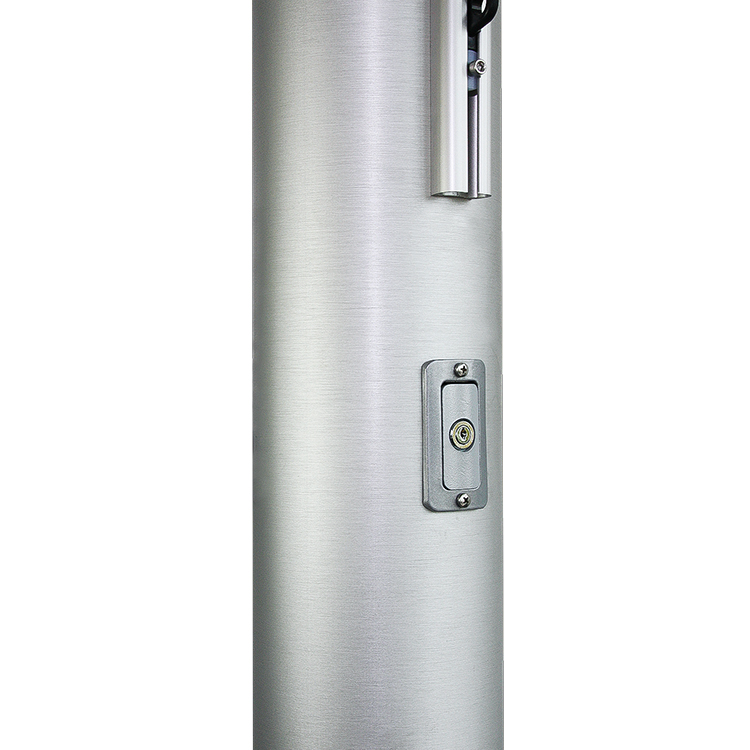

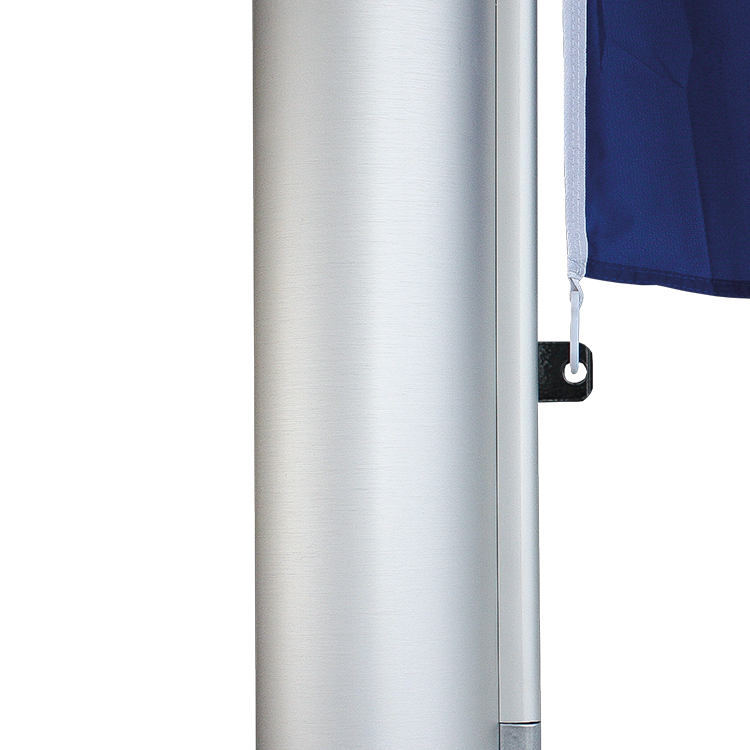

The rising perlon halyard runs inside the pole tube, is deflected in the top cap and connects in the C-rail to the topmost flag fabric holder. This topmost flag fabric holder is designed as a long slide and made as an aluminium profile. To improve its sliding properties, the long slide is also plastic-coated. The remaining flag fabric holders are made of plastic and run loosely in the C-rail. The halyard is operated at the control housing with a rope clamp and a flush-fitting door with a lock. The halyard is fixed in the rope clamp automatically by the registered-design quick-fixing system (SFS). If the halyard is pulled horizontally it releases from the rope clamp; if it is let go, the topmost flag fabric holder (long slide) locks in its current position.

Equipment

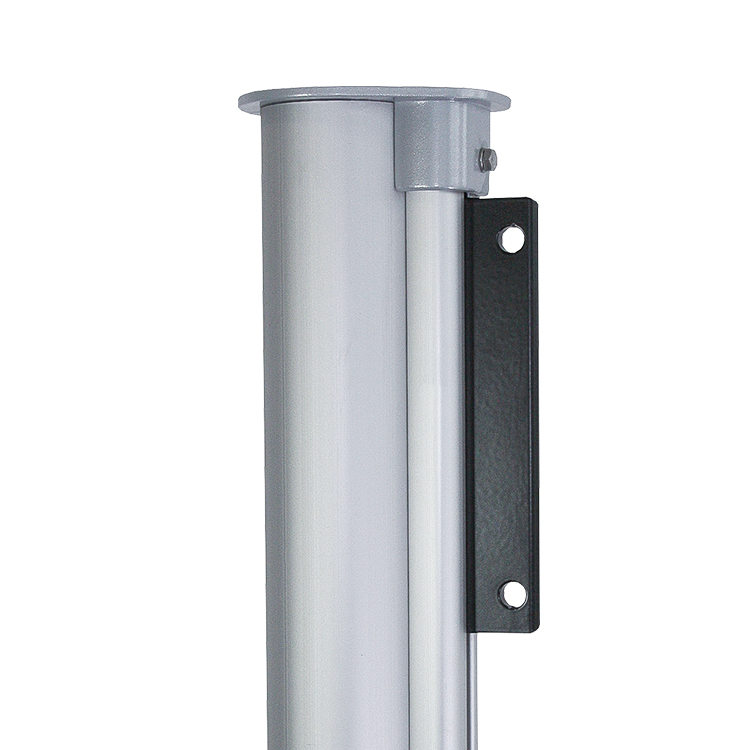

  • Elegant top cap in silumin casting with integrated rope pulley
  • safe and durable, concealed hoisting system in a mounted C-rail
  • perlon halyard 5 mm, with 5 flag fabric holders

Technical data

Nominal height 8 m, total height 8.80 m, diameter at top 76 mm, diameter at bottom 135 mm

Stability

When installed in a ground socket, up to 9 Beaufort With a tilting mount, EN 1991-1-4/NA is met (fully stable)

Flag finishing

No special flag finishing is required. All common, freely flying types of flag up to a size of 1.5 x 4 m can be hoisted. The flag carabiners are hooked into the eyelets of the flag fabric holders.

Frequently asked questions about this pole

Foundation plan for this pole (PDF) Dimensions of the concrete foundation, installation depth of the ground socket and concrete grade – ready to print for your groundworks contractor.
Operation & maintenance The assembly and operating instructions supplied with the pole are authoritative. For guidance: the wind strength above which the flag should be taken down and how to bring it in gently and store it. Visually inspect the rope, pulley, ground socket and pole base regularly, and additionally after a storm.

Key technical data

Pole tube
Ø 135/76 mm (bottom/top), wall thickness 3.0 mm
Max. flag size
max. 4.00 x 1.50 m (portrait)
Do flagpoles need a foundation?
Yes, flagpoles should always have a foundation. As a rule, a ground socket is set in concrete and the flagpole is then simply inserted into it. This means the pole can easily be removed from the socket again at any time.
Which concrete is needed for the foundation?
Concrete C 25/30 – you will also find this information on the foundation plan. Concrete of grade C 25/30 is available from specialist suppliers (concrete plants, builders' merchants).
Do the foundation and the flagpole have to be installed by a specialist company?
With a little practical skill, any DIY enthusiast can install the foundation and the flagpole themselves following the instructions supplied. It is not strictly necessary for this to be done by a specialist company.
What is the difference between a tapered and a cylindrical flagpole?
A tapered flagpole narrows from bottom to top. For example, the lower diameter is 177 mm and the upper one 76 mm. On a cylindrical flagpole the diameter is the same throughout.
What are the advantages of an internal hoisting mechanism?
Flag and pole are considerably better protected against theft and vandalism. Poles with an internal hoisting mechanism are often more convenient to operate as well (e.g. by winch). It is less susceptible to dirt and moisture. The internal halyard is also quieter, since it cannot knock against the pole.
Is it possible to retrofit a flagpole with an outrigger?
Converting ZI poles with an internal halyard to ZA poles is no problem. The pole is then fitted with an outrigger that can be hoisted. The Z series with a standard hoisting mechanism can be converted to ZD, which cannot be hoisted. For other poles, please enquire.

Question not listed? All questions & answers · or call us: 09833 98894-0
