7 m tapered aluminium flagpole, K114-177, Ø 114/76, standard hoisting system

7 m tapered aluminium flagpole, K114-177, Ø 114/76, standard hoisting system

7 m tapered aluminium flagpole, K114-177, Ø 114/76, standard hoisting system
Show reviews »
Quality seals and awards
Produktdetails

Key information at a glance

Item no. 8120.01
Hoisting typeExternal halyard
Pole shapetapered
MaterialAluminium
Height7 m
Advice by phone
Our hotline is available Mon–Thu 7:30am–5pm and Fri until 12:30pm: Our hotline number
Freight delivery to Germany from €88
Exact price by postcode in the basket · volume discounts on multiple poles
Volume discount on flagpoles from 3 units · details
from 3−2 % from 6−3 % from 9−4 % from 12−5 % from 15−6 % from 20−7 % from 25−8 %
Applies to poles only, delivered to the same unloading point and the same customer. The discount is deducted automatically in the basket.
Your price
net € 339,00 € 403,41
incl. VAT plus Freight costs
Delivery time approx. 10–15 working days
Order the accessories you need at the same time

The ground socket is not included. It is set into the concrete foundation – after which the pole is simply inserted.

Centring sleeve for conical aluminium flagpoles, Ø 114 mm, without anti-twist and remo Centring sleeve for conical aluminium flagpoles, Ø 114 mm, without anti-twist and remo
+ 86,87 €
Add to basket now
Response usually within 1 hour (Mon–Fri) · no obligation & free of charge
5-year warranty
Purchase on account for public authorities & municipalities
Buyer protection & secure payment
Payment methods: Visa Mastercard girocard PayPal Klarna Wero
7 m tapered aluminium flagpole, K114-177, Ø 114/76, standard hoisting system
7 m tapered aluminium flagpole, K114-177, Ø 114/76, standard hoisting system Item no. 8120.01
– incl. VAT · incl. accessories
  • Wind-stable, torsion-resistant construction for permanent outdoor use
  • Anodised aluminium – corrosion-free, UV- and weather-resistant
  • 5-year warranty · Made in Germany
  • As a complete set: ground socket & accessories can be ordered with it

7 m tapered aluminium flagpole, K114-177, Ø 114/76, standard hoisting system has the item number 8120.01 and is characterised by nominal height 7 m, standard hoisting system, tapered design. This version is available from 403,41 € incl. VAT.

7 m above ground – which means the pole is the typical choice for company entrances, car dealerships and club grounds. We recommend portrait flags of 350 to 500 cm in length, or landscape formats around 150 × 250 cm. The pole is set into a ground socket cast in concrete; the stated 7 m are the visible height above ground, so the overall length is correspondingly greater. You will find the matching foundation plan in the „Instructions“ tab. The standard hoisting system guides the rope on the outside of the pole and is straightforward to operate.

The conical pole tube is first-class in both elegance and stability. Over the bottom fifth of its total length it is cylindrical at first and then merges seamlessly into the conical taper. Because it tapers towards the pole head, wind pressure and suction are lower than with tubes that are cylindrical throughout. The external halyard with pulley and cleat is the standard hoisting device: affordable, robust and easy to operate. The high-grade alloy combined with the large tube cross-section ensures lasting stability. The anodised layer to Euras standard DIN 17611 (at least 20 micron layer thickness) guarantees a durable, attractive surface finish.

Equipment

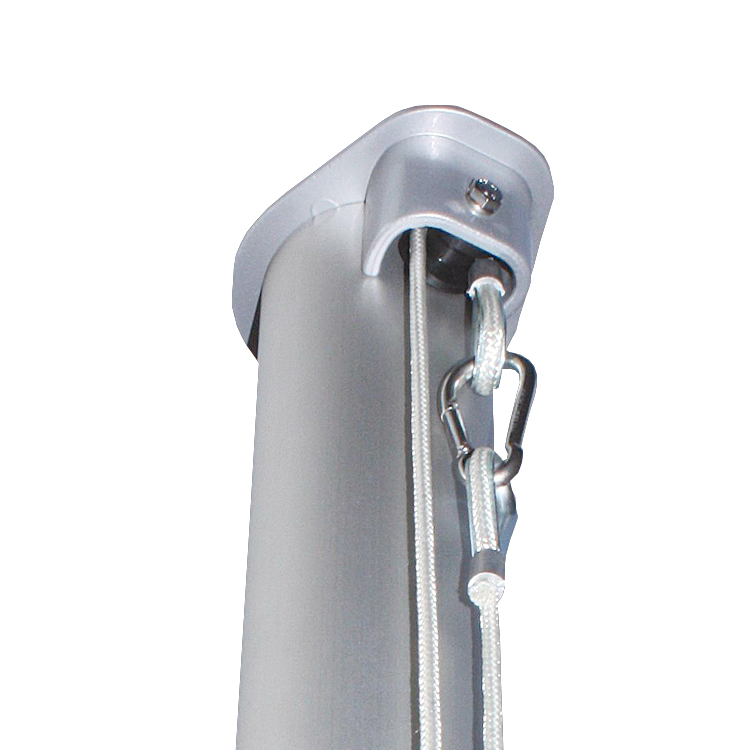

  • Elegant top cap in silumin casting with integrated rope pulley
  • perlon halyard, Ø 5 mm, thimble crimped at both ends, stainless steel carabiner

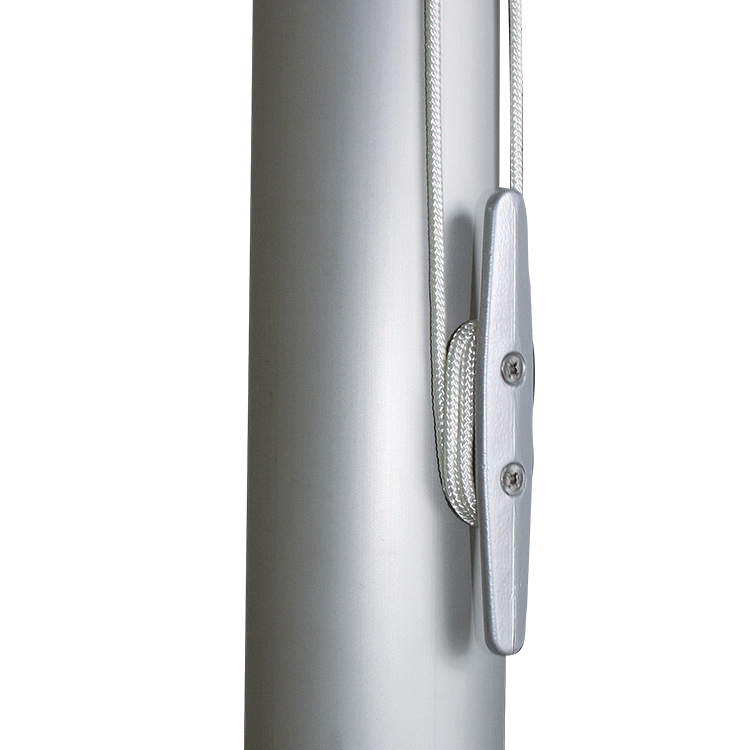

  • cleat in cast aluminium, 160 mm

Technical data

Nominal height 7 m, total length 7.70 m, tube Ø 114 mm at the bottom, Ø 76 mm at the top

Stability

When installed in a ground socket, up to 9 Beaufort With a tilting mount, EN 1991-1-4/NA is met (fully stable)

Flag finishing

No special flag finishing is required. All common, freely flying types of flag up to a size of 1.5 x 4 m can be hoisted. The flag carabiners are hooked into the eyelets of the flag fabric holders.

On request

  • Special paint finish, special anodising
  • additional and/or higher hole for the cleat
  • special sizes up to 22 m

Frequently asked questions about this pole

Foundation plan for this pole (PDF) Dimensions of the concrete foundation, installation depth of the ground socket and concrete grade – ready to print for your groundworks contractor.
Operation & maintenance The assembly and operating instructions supplied with the pole are authoritative. For guidance: the wind strength above which the flag should be taken down and how to bring it in gently and store it. Visually inspect the rope, pulley, ground socket and pole base regularly, and additionally after a storm.

Key technical data

Pole tube
Ø 114/76 mm (bottom/top), wall thickness 2.5 mm
Max. flag size
max. 4.00 x 1.50 m (portrait)
Do flagpoles need a foundation?
Yes, flagpoles should always have a foundation. As a rule, a ground socket is set in concrete and the flagpole is then simply inserted into it. This means the pole can easily be removed from the socket again at any time.
Which concrete is needed for the foundation?
Concrete C 25/30 – you will also find this information on the foundation plan. Concrete of grade C 25/30 is available from specialist suppliers (concrete plants, builders' merchants).
Do the foundation and the flagpole have to be installed by a specialist company?
With a little practical skill, any DIY enthusiast can install the foundation and the flagpole themselves following the instructions supplied. It is not strictly necessary for this to be done by a specialist company.
What is the difference between a tapered and a cylindrical flagpole?
A tapered flagpole narrows from bottom to top. For example, the lower diameter is 177 mm and the upper one 76 mm. On a cylindrical flagpole the diameter is the same throughout.
Which flag size do I need for which pole?
We recommend the following sizes:

Flags and banners, portrait format:
Nominal height in m Flag size in cm
5 80x200
6 100x300
7 150x350
8 100x400
9 120x500
10-12 larger

Hoisted flags, landscape format:
Nominal height in m Flag size in cm
5 120x80
6 150x120
7 180x120
8 200x120
9 225x150
10 250x150
12 300x200
Is planning permission required to erect a flagpole?
The erection of flagpoles is regulated differently by each building authority, town or municipality. We therefore recommend asking your responsible authority whether planning permission is required. Here is a list of the permit rules, sorted by federal state. No guarantee is given.

Question not listed? All questions & answers · or call us: 09833 98894-0
