7 m cylindrical aluminium flagpole, ZI75, Ø 75 mm, internal halyard

7 m cylindrical aluminium flagpole, ZI75, Ø 75 mm, internal halyard

Quality seals and awards
Produktdetails

Key information at a glance

Item no. 8109.07
Hoisting typeInternal halyardführung
Pole shapecylindrical
MaterialAluminium
Height7 m
MastdurchmesserØ 75 mm
Advice by phone
Our hotline is available Mon–Thu 7:30am–5pm and Fri until 12:30pm: Our hotline number
Speditionsversand nach Deutschland ab 88 €
Exact price by postcode in the basket · volume discounts on multiple poles
Volume discount on flagpoles from 3 units · details
from 3−2 % from 6−3 % from 9−4 % from 12−5 % from 15−6 % from 20−7 % from 25−8 %
Applies to poles only, delivered to the same unloading point and the same customer. The discount is deducted automatically in the basket.
Your price
netto € 282,00 € 335,58
incl. VAT zzgl. Freight costs
Lieferzeit ca. 10–15 Werktage
Order the accessories you need at the same time

Im Mastpreis ist die ground socket nicht enthalten. Sie wird ins Betonfundament einbetoniert – der Mast wird danach nur noch eingesteckt.

Add to basket now
Antwort i.d.R. innerhalb 1 Std. (Mo–Fr) · unverbindlich & kostenlos
5-year warranty
Purchase on account for public authorities & municipalities
Buyer protection & secure payment
Payment methods: Visa Mastercard girocard PayPal Klarna Wero
7 m cylindrical aluminium flagpole, ZI75, Ø 75 mm, internal halyard
7 m cylindrical aluminium flagpole, ZI75, Ø 75 mm, internal halyard Item no. 8109.07
incl. VAT · incl. accessories
  • Wind-stable, torsion-resistant construction for permanent outdoor use
  • Anodised aluminium – corrosion-free, UV- and weather-resistant
  • 5-year warranty · Made in Germany
  • As a complete set: ground socket & accessories can be ordered with it

Frequently asked questions zu diesem Masten

Fundamentplan für diesen Masten (PDF) Maße des Betonfundaments, Einbautiefe der ground socket und Betongüte – direkt zum Ausdrucken für Ihren Tiefbauer.
Betrieb & Wartung Maßgeblich sind die Montage- und Betriebsanleitung, die dem Mast beiliegen. Zur Orientierung: ab welcher Windstärke die Fahne herunter sollte und wie Sie sie schonend einholen und lagern. Seil, Rolle, ground socket und Mastfuß regelmäßig sichtprüfen, nach einem Sturm zusätzlich.
Do flagpoles need a foundation?
Yes, flagpoles should always have a foundation. As a rule, a ground socket is set in concrete and the flagpole is then simply inserted into it. This means the pole can easily be removed from the socket again at any time.
Which concrete is needed for the foundation?
Concrete C 25/30 – you will also find this information on the foundation plan. Concrete of grade C 25/30 is available from specialist suppliers (concrete plants, builders' merchants).
Do the foundation and the flagpole have to be installed by a specialist company?
With a little practical skill, any DIY enthusiast can install the foundation and the flagpole themselves following the instructions supplied. It is not strictly necessary for this to be done by a specialist company.
So what does ZI75 mean?
The I in ZI75 stands for internal halyard.
What are the advantages of an internal hoisting mechanism?

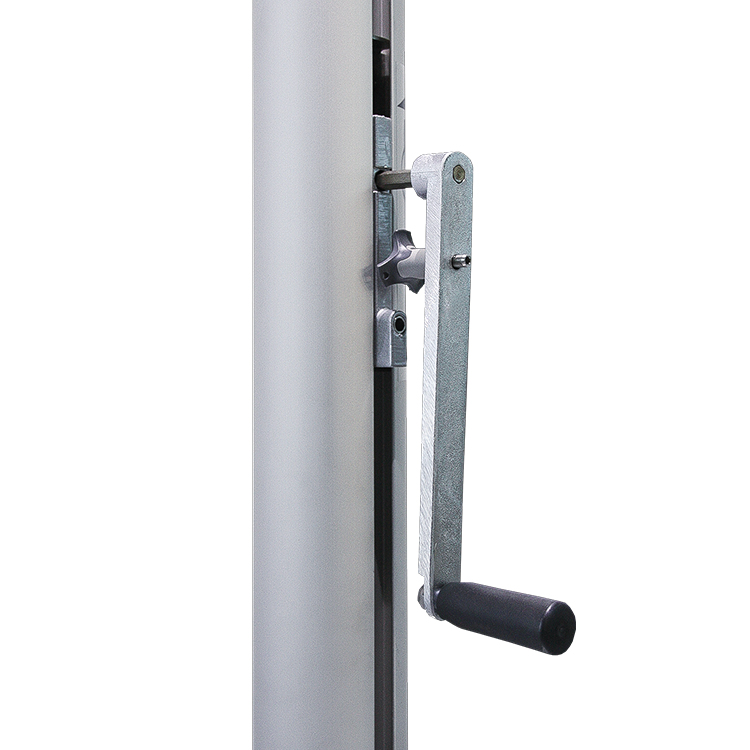

Flag and pole are considerably better protected against theft and vandalism. Poles with an internal hoisting mechanism are often more convenient to operate as well (e.g. by winch). It is less susceptible to dirt and moisture. The internal halyard is also quieter, since it cannot knock against the pole.
Is it possible to retrofit a flagpole with an outrigger?
Converting ZI poles with an internal halyard to ZA poles is no problem. The pole is then fitted with an outrigger that can be hoisted. The Z series with a standard hoisting mechanism can be converted to ZD, which cannot be hoisted. For other poles, please enquire.

Frage nicht dabei? Alle Fragen & Antworten · oder rufen Sie uns an: 09833 98894-0


7 m cylindrical aluminium flagpole, ZI75, Ø 75 mm, internal halyard has the item number 8109.07 and is characterised by nominal height 7 m, pole diameter 75 mm, internal halyard, cylindrical design. This model is available from 335,58 € incl. VAT.

At a nominal height of 7 m, the pole is the typical choice for company entrances, car dealerships and club grounds. When choosing a flag, aim for 350 to 500 cm in length in portrait format, or around 150 × 250 cm in landscape. The foundation holds a ground socket, out of which the 7 m nominal height projects. The pole diameter of 75 mm determines the matching socket size. You will find the matching foundation plan in the „Instructions“ tab. The tube is made of aluminium and has a cylindrical profile with a diameter of 75 mm. The internal halyard runs protected inside the pole and makes unauthorised lowering of the flag more difficult.

The internal halyard of the ZI75 offers the best possible protection against flag theft, and operation is simple and convenient.

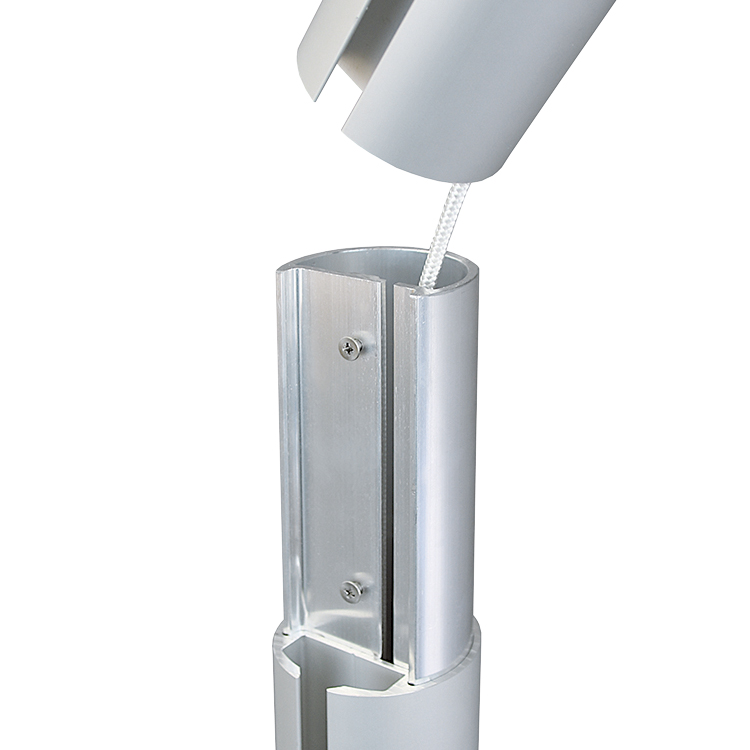

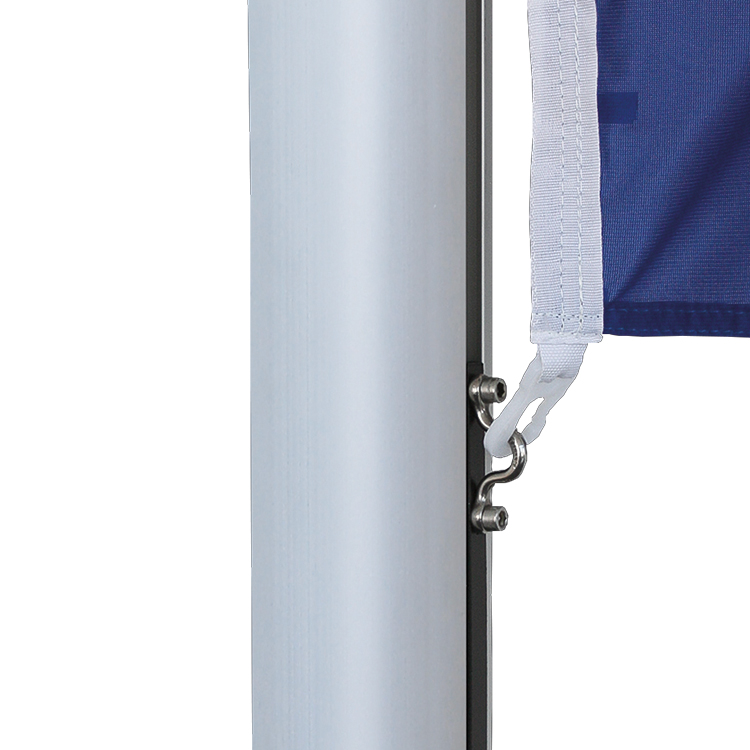

The perlon halyard running up inside the pole tube is operated via the lockable control housing with the SFS quick-fixing system. The long slide and flag fabric holders run quietly in the moulded pole groove. The flag is hooked into the eyelet of the long slide with its topmost carabiner, the remaining carabiners into the flag fabric holders (4 pcs.), which are made of plastic. To prevent the flag from riding up in gusts, the flag weight is attached to the lowest flag carabiner. The high-grade material EN AW-6082T6 ensures lasting stability. The anodised layer to Euras standard DIN 17611 (at least 20 micron layer thickness) guarantees a durable, attractive surface finish.

Equipment

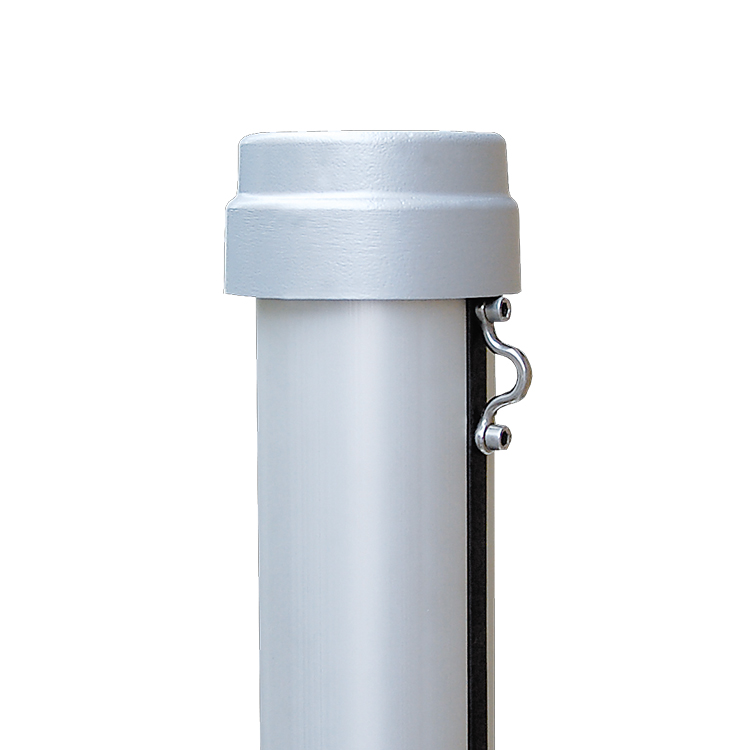

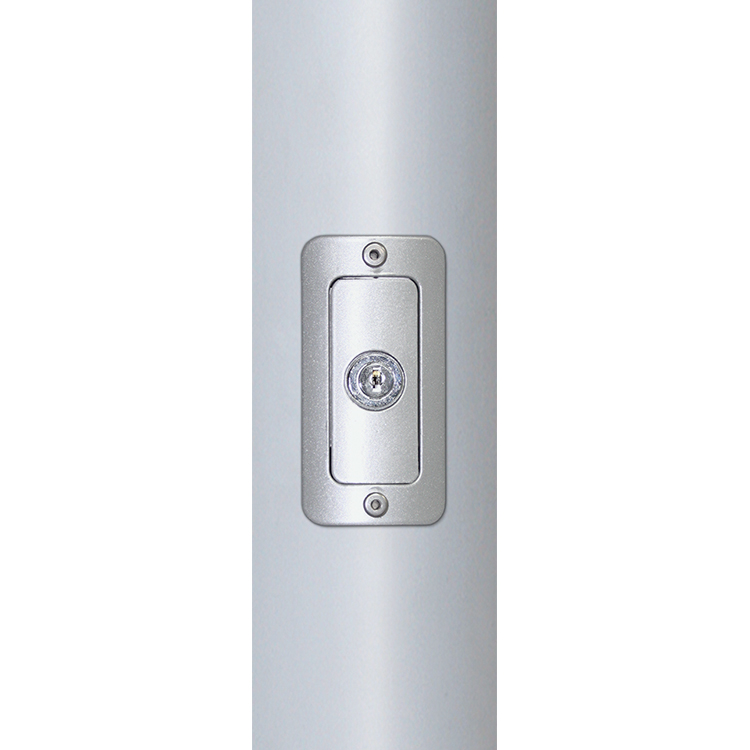

Elegant top cap in silumin casting with integrated rope pulley / long slide in cast aluminium with stainless steel eyelet / plastic flag fabric holders (4 pcs.) / flag weight / concealed perlon halyard, Ø 5 mm / control door with bolt lock / SFS quick-fixing system for the halyard

Delivery:
ready to hoist

Technical data
Nominal height 7 m, total length 7.60 m, cylindrical pole tube with groove, Ø=75 mm, wall thickness = 3 mm,

Flag finishing:
ZI75 poles are approved for a maximum freely flying flag area of 1.50 x 4.00 m. On the 7 m pole the flag must be taken down from wind force 9 Beaufort (from 75 km/h)!
