6 m cylindrical aluminium flagpole, ZI90K, Ø 90 mm, internal halyard, winch drive

6 m cylindrical aluminium flagpole, ZI90K, Ø 90 mm, internal halyard, winch drive

6 m cylindrical aluminium flagpole, ZI90K, Ø 90 mm, internal halyard, winch drive
Show reviews »
Quality seals and awards
Produktdetails

Key information at a glance

Item no. 8101.09
Hoisting typeInternal halyard
Pole shapecylindrical
MaterialAluminium
Height6 m
MastdurchmesserØ 90 mm
Advice by phone
Our hotline is available Mon–Thu 7:30am–5pm and Fri until 12:30pm: Our hotline number
Freight delivery to Germany from €88
Exact price by postcode in the basket · volume discounts on multiple poles
Volume discount on flagpoles from 3 units · details
from 3−2 % from 6−3 % from 9−4 % from 12−5 % from 15−6 % from 20−7 % from 25−8 %
Applies to poles only, delivered to the same unloading point and the same customer. The discount is deducted automatically in the basket.
Your price
net € 413,00 € 491,47
incl. VAT plus Freight costs
Delivery time approx. 10–15 working days
Order the accessories you need at the same time

The ground socket is not included. It is set into the concrete foundation – after which the pole is simply inserted.

Aluminium ground socket for cylindrical aluminium poles with Ø 90 mm Aluminium ground socket for cylindrical aluminium poles with Ø 90 mm
+ 49,98 €
Add to basket now
Response usually within 1 hour (Mon–Fri) · no obligation & free of charge
5-year warranty
Purchase on account for public authorities & municipalities
Buyer protection & secure payment
Payment methods: Visa Mastercard girocard PayPal Klarna Wero
6 m cylindrical aluminium flagpole, ZI90K, Ø 90 mm, internal halyard, winch drive
6 m cylindrical aluminium flagpole, ZI90K, Ø 90 mm, internal halyard, winch drive Item no. 8101.09
– incl. VAT · incl. accessories
  • Wind-stable, torsion-resistant construction for permanent outdoor use
  • Anodised aluminium – corrosion-free, UV- and weather-resistant
  • 5-year warranty · Made in Germany
  • As a complete set: ground socket & accessories can be ordered with it

6 m cylindrical aluminium flagpole, ZI90K, Ø 90 mm, internal halyard, winch drive has the item number 8101.09 and is characterised by nominal height 6 m, pole diameter 90 mm, internal halyard, cylindrical design. The variant can be supplied from 491,47 € incl. VAT.

At 6 m of visible pole height, the pole is the typical choice for company entrances, car dealerships and club grounds. For poles of this height we recommend portrait flags of roughly 300 to 400 cm in length – as a rule of thumb, a flag should be about half to two thirds of the nominal height. Installation requires a foundation with a ground socket – the 6 m nominal height refers to the visible section above ground level. Choose the ground socket to match the 90 mm tube diameter. You will find the matching foundation plan in the „Instructions“ tab. The cylindrical pole body of aluminium measures 90 mm in diameter. The internal halyard runs protected inside the pole and makes unauthorised lowering of the flag more difficult.

The internal halyard of the ZI90K offers the best possible protection against flag theft, and operation is simple and convenient.

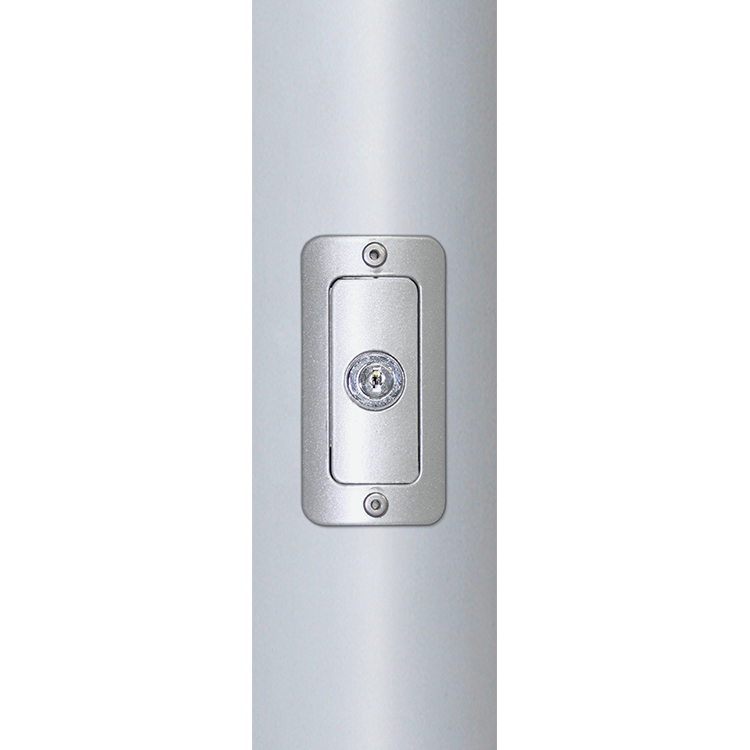

The ZI90K is equipped with the new Flaglift crank hoisting device; the spring-tensioned stainless steel halyard is installed as a continuous loop in the pole groove. Protection against unauthorised operation is provided by the plug cylinder in the safety bolt. The flag is hooked into the eyelet of the long slide with its topmost carabiner, the remaining carabiners into the flag fabric holders (4 pcs.), which are made of plastic. To prevent the flag from riding up in gusts, the flag weight is attached to the lowest flag carabiner. The high-grade EN AW-6082T6 alloy ensures lasting stability. The anodised layer to Euras standard DIN 17611 (at least 20 micron layer thickness) guarantees a durable, attractive surface finish.

Equipment

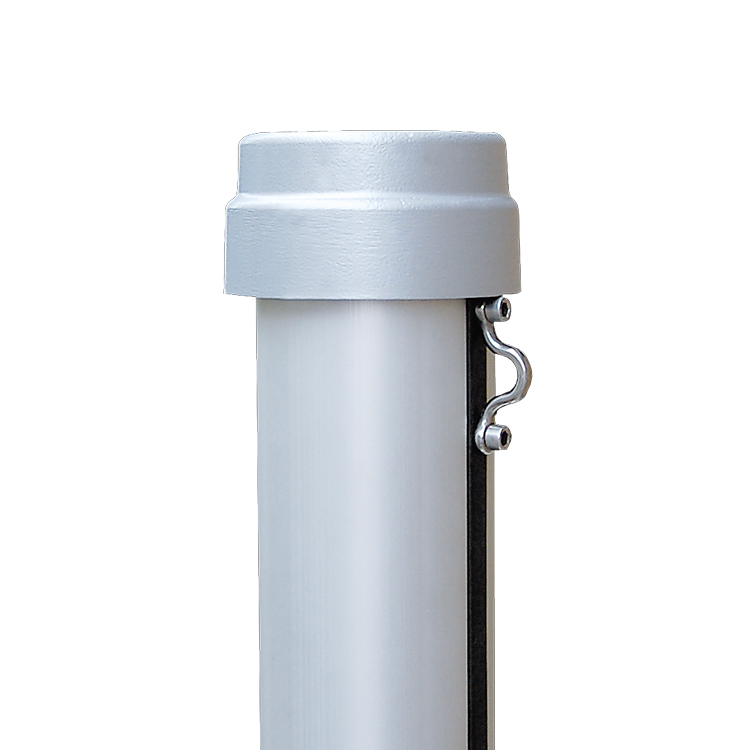

  • Elegant top cap in silumin casting with integrated rope pulley
  • safe and durable hoisting system running inside the pole tube

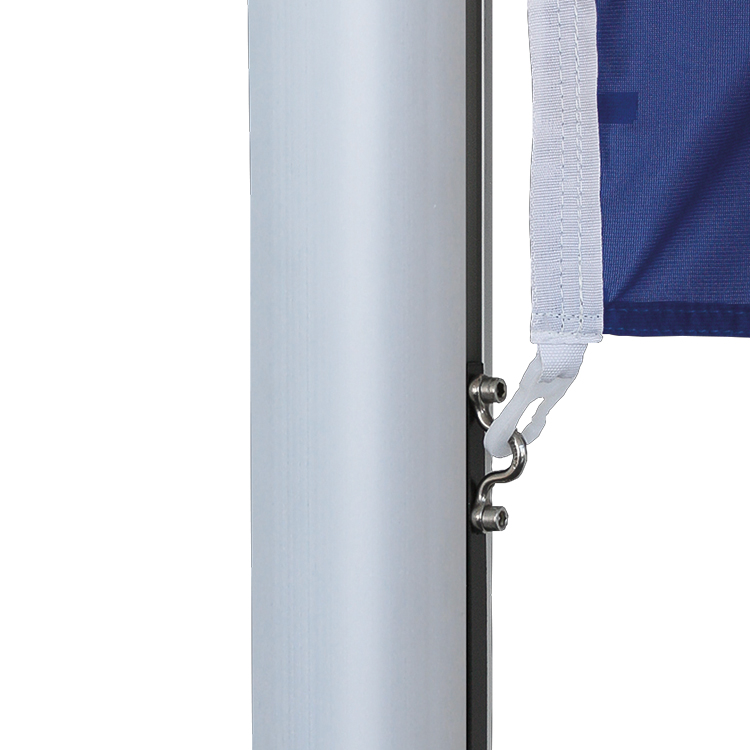

  • 4 flag fabric holders running in the pole groove
  • no riding up of the flag in gusts thanks to the flag weight with stainless steel carabiner on the lowest carabiner hook

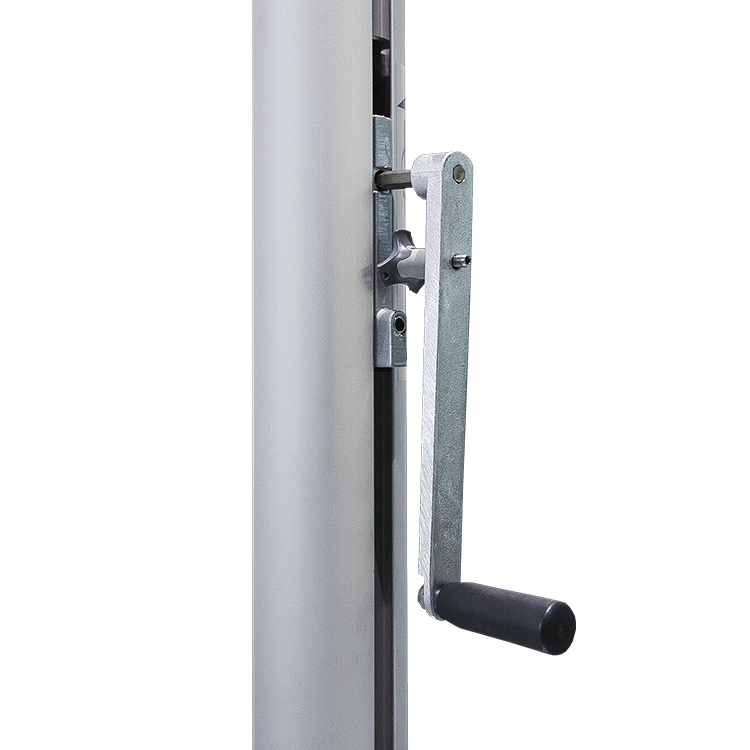

  • Flaglift crank hoisting device with spring-tensioned stainless steel halyard running concealed in the pole groove, with plug cylinder, hand crank

Delivery

ready to hoist

Technical data Nominal height 6 m, total length 6.70 m, cylindrical pole tube with groove, Ø=90 mm, wall thickness = 3 mm,

Flag finishing

No special flag finishing is required. All common, freely flying types of flag up to a max. size of 1.50 x 4.00 m can be hoisted. The flag carabiners are hooked into the eyelets of the flag fabric holders.

Frequently asked questions about this pole

Foundation plan for this pole (PDF) Dimensions of the concrete foundation, installation depth of the ground socket and concrete grade – ready to print for your groundworks contractor.
Operation & maintenance The assembly and operating instructions supplied with the pole are authoritative. For guidance: the wind strength above which the flag should be taken down and how to bring it in gently and store it. Visually inspect the rope, pulley, ground socket and pole base regularly, and additionally after a storm.

Key technical data

Pole tube
Ø 90 mm, wall thickness 3.0 mm
Max. flag size
max. 3.00 x 1.20 m (portrait)
Do flagpoles need a foundation?
Yes, flagpoles should always have a foundation. As a rule, a ground socket is set in concrete and the flagpole is then simply inserted into it. This means the pole can easily be removed from the socket again at any time.
Which concrete is needed for the foundation?
Concrete C 25/30 – you will also find this information on the foundation plan. Concrete of grade C 25/30 is available from specialist suppliers (concrete plants, builders' merchants).
Do the foundation and the flagpole have to be installed by a specialist company?
With a little practical skill, any DIY enthusiast can install the foundation and the flagpole themselves following the instructions supplied. It is not strictly necessary for this to be done by a specialist company.
So what does ZI75 mean?
The I in ZI75 stands for internal halyard.
What are the advantages of an internal hoisting mechanism?
Flag and pole are considerably better protected against theft and vandalism. Poles with an internal hoisting mechanism are often more convenient to operate as well (e.g. by winch). It is less susceptible to dirt and moisture. The internal halyard is also quieter, since it cannot knock against the pole.
Is it possible to retrofit a flagpole with an outrigger?
Converting ZI poles with an internal halyard to ZA poles is no problem. The pole is then fitted with an outrigger that can be hoisted. The Z series with a standard hoisting mechanism can be converted to ZD, which cannot be hoisted. For other poles, please enquire.
