You are here: Flagpole range > External halyard hoisting system, aluminium flagpole, stepped cylindrical, sectional > 7 m single-stepped, two-piece aluminium pole, S90 series, Ø 90/75 mm
7 m single-stepped, two-piece aluminium pole, S90 series, Ø 90/75 mm

7 m single-stepped, two-piece aluminium pole, S90 series, Ø 90/75 mm

7 m single-stepped, two-piece aluminium pole, S90 series, Ø 90/75 mm
Show reviews »
Quality seals and awards
Produktdetails

Key information at a glance

Item no. 8107.26
Hoisting typeExternal halyard
Pole shapecylindrical
MaterialAluminium
Height7 m
MastdurchmesserØ 90 mm
Advice by phone
Our hotline is available Mon–Thu 7:30am–5pm and Fri until 12:30pm: Our hotline number
Freight delivery to Germany from €88
Exact price by postcode in the basket · volume discounts on multiple poles
Volume discount on flagpoles from 3 units · details
from 3−2 % from 6−3 % from 9−4 % from 12−5 % from 15−6 % from 20−7 % from 25−8 %
Applies to poles only, delivered to the same unloading point and the same customer. The discount is deducted automatically in the basket.
Your price
net € 321,00 € 381,99
incl. VAT plus Freight costs
Delivery time approx. 10–15 working days
Order the accessories you need at the same time

The ground socket is not included. It is set into the concrete foundation – after which the pole is simply inserted.

Aluminium ground socket for cylindrical aluminium poles with Ø 90 mm Aluminium ground socket for cylindrical aluminium poles with Ø 90 mm
+ 49,98 €
Add to basket now
Response usually within 1 hour (Mon–Fri) · no obligation & free of charge
5-year warranty
Purchase on account for public authorities & municipalities
Buyer protection & secure payment
Payment methods: Visa Mastercard girocard PayPal Klarna Wero
7 m single-stepped, two-piece aluminium pole, S90 series, Ø 90/75 mm
7 m single-stepped, two-piece aluminium pole, S90 series, Ø 90/75 mm Item no. 8107.26
– incl. VAT · incl. accessories
  • Wind-stable, torsion-resistant construction for permanent outdoor use
  • Anodised aluminium – corrosion-free, UV- and weather-resistant
  • 5-year warranty · Made in Germany
  • As a complete set: ground socket & accessories can be ordered with it

7 m single-stepped, two-piece aluminium pole, S90 series, Ø 90/75 mm has the item number 8107.26 and is characterised by nominal height 7 m, pole diameter 90 mm, standard hoisting system, cylindrical design. The entry-level price is 381,99 € incl. VAT.

With 7 m of visible height above ground, the pole is the typical choice for company entrances, car dealerships and club grounds. Portrait flags of between 350 and 500 cm in length suit this pole; in landscape format, sizes around 150 × 250 cm work well. The pole is installed in a ground socket cast in concrete; the stated 7 m remain visible above the foundation. The ground socket has to match the 90 mm diameter. You will find the matching foundation plan in the „Instructions“ tab. At 90 mm in diameter, the cylindrical tube is made of aluminium. The standard hoisting system guides the rope on the outside of the pole and is straightforward to operate.

The external halyard with pulley and cleat is the standard hoisting device: affordable, robust and easy to operate. The high-grade EN AW-6082T6 alloy ensures lasting stability. The anodised layer to Euras standard DIN 17611 guarantees a durable, attractive surface finish.

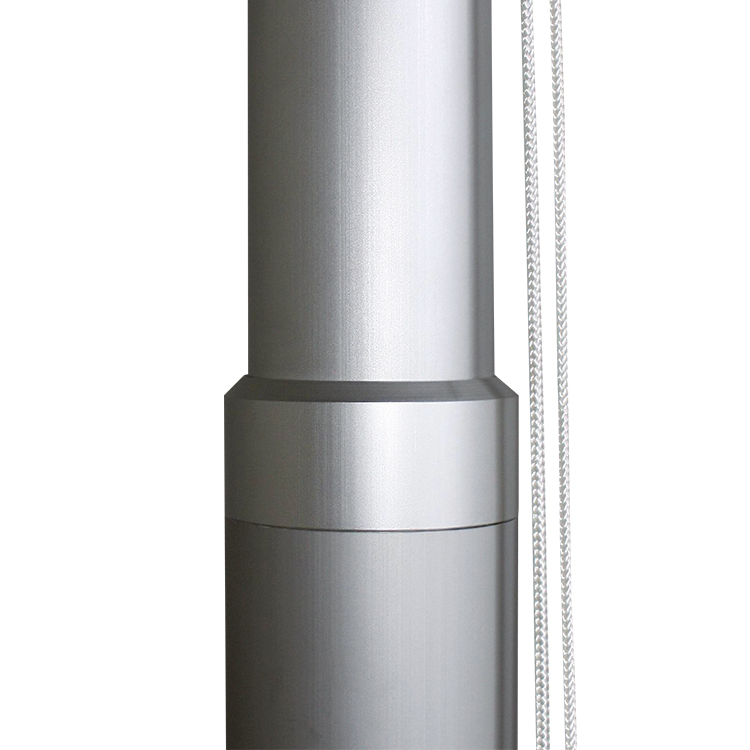

To avoid possible transport and storage problems, it is offered in a two-piece version. Assembly is done by slotting the individual lengths into one another with the least possible time and effort. Threaded holes for the securing screws are prepared at the factory, so all you need is a cross-head screwdriver.

Equipment

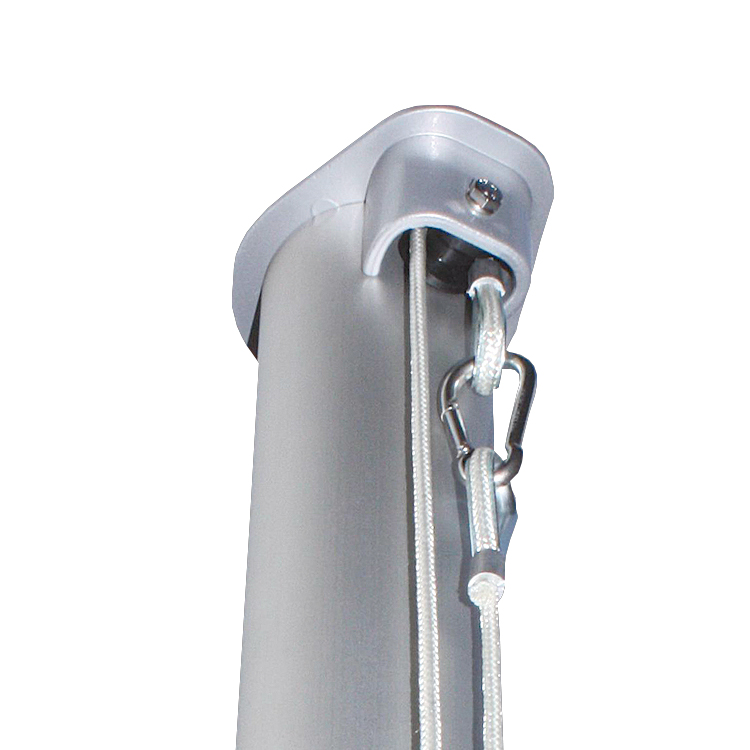

  • Elegant top cap in silumin casting with integrated rope pulley
  • perlon halyard, Ø 5 mm, thimble crimped at both ends
  • stainless steel carabiner

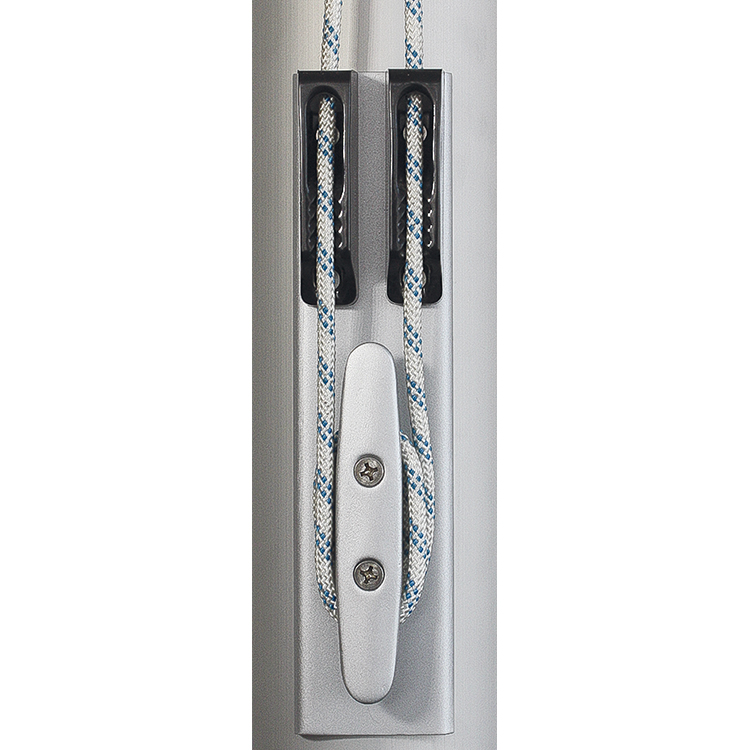

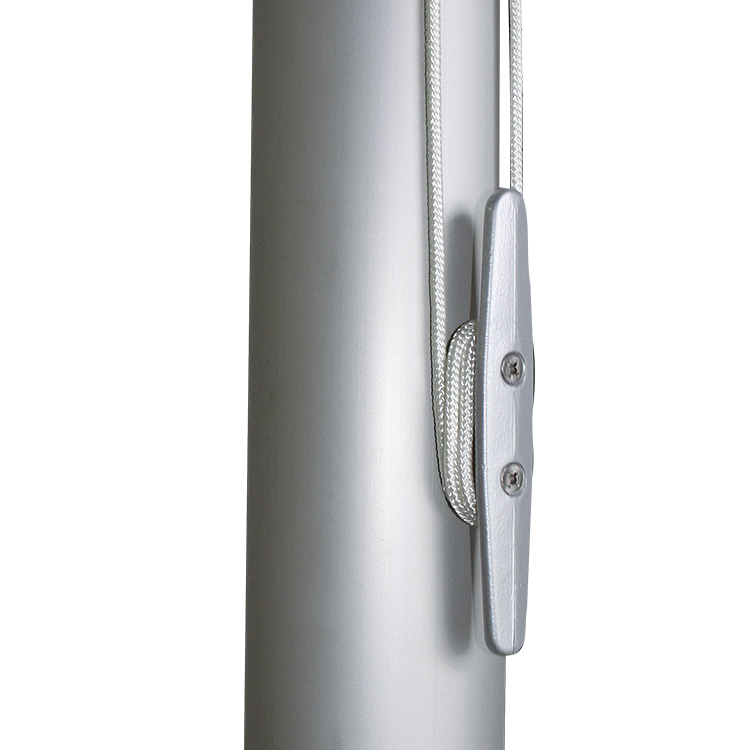

  • cleat in cast aluminium, 160 mm

Technical data

  • Nominal height m (NH) 7.00
  • total length m (GL) 7.70
  • buried length m (EL) 0.70
  • Ø at top mm 75
  • Ø at bottom mm 90
  • weight in kg 17

Flag finishing No special flag finishing is required. All common, freely flying types of flag up to a maximum size of 1.5 x 4 m can be hoisted. The topmost flag carabiner is hooked into the thimble crimp of the halyard, the lower carabiners around the halyard.

Frequently asked questions about this pole

Foundation plan for this pole (PDF) Dimensions of the concrete foundation, installation depth of the ground socket and concrete grade – ready to print for your groundworks contractor.
Operation & maintenance The assembly and operating instructions supplied with the pole are authoritative. For guidance: the wind strength above which the flag should be taken down and how to bring it in gently and store it. Visually inspect the rope, pulley, ground socket and pole base regularly, and additionally after a storm.

Key technical data

Pole tube
Ø 90/75 mm, wall thickness 3.0 mm
Max. flag size
max. 4.00 x 1.50 m (portrait)
Do flagpoles need a foundation?
Yes, flagpoles should always have a foundation. As a rule, a ground socket is set in concrete and the flagpole is then simply inserted into it. This means the pole can easily be removed from the socket again at any time.
Which concrete is needed for the foundation?
Concrete C 25/30 – you will also find this information on the foundation plan. Concrete of grade C 25/30 is available from specialist suppliers (concrete plants, builders' merchants).
Do the foundation and the flagpole have to be installed by a specialist company?
With a little practical skill, any DIY enthusiast can install the foundation and the flagpole themselves following the instructions supplied. It is not strictly necessary for this to be done by a specialist company.
Which flag size do I need for which pole?
We recommend the following sizes:

Flags and banners, portrait format:
Nominal height in m Flag size in cm
5 80x200
6 100x300
7 150x350
8 100x400
9 120x500
10-12 larger

Hoisted flags, landscape format:
Nominal height in m Flag size in cm
5 120x80
6 150x120
7 180x120
8 200x120
9 225x150
10 250x150
12 300x200
Is planning permission required to erect a flagpole?
The erection of flagpoles is regulated differently by each building authority, town or municipality. We therefore recommend asking your responsible authority whether planning permission is required. Here is a list of the permit rules, sorted by federal state. No guarantee is given.
What is the delivery time for flagpoles and spare parts?
2-3 weeks; faster delivery by freight forwarder is possible for a surcharge.

Question not listed? All questions & answers · or call us: 09833 98894-0
