9 m flagpole, twice stepped, 3-piece, S100 series, Ø=100/90/75 mm has the item number 8107.31 and is characterised by nominal height 9 m, pole diameter 100 mm, standard hoisting system, cylindrical design. This version is available from 590,24 € incl. VAT.
9 m above ground – which means the pole remains highly visible even across larger commercial sites and car parks. We recommend portrait flags of 450 to 650 cm in length, or landscape formats around 150 × 300 cm. The pole is set into a ground socket cast in concrete; the stated 9 m are the visible height above ground, so the overall length is correspondingly greater. The ground socket has to match the 100 mm diameter. You will find the matching foundation plan in the „Instructions“ tab. aluminium as the material and a cylindrical tube cross-section of 100 mm characterise this design. The standard hoisting system guides the rope on the outside of the pole and is straightforward to operate.

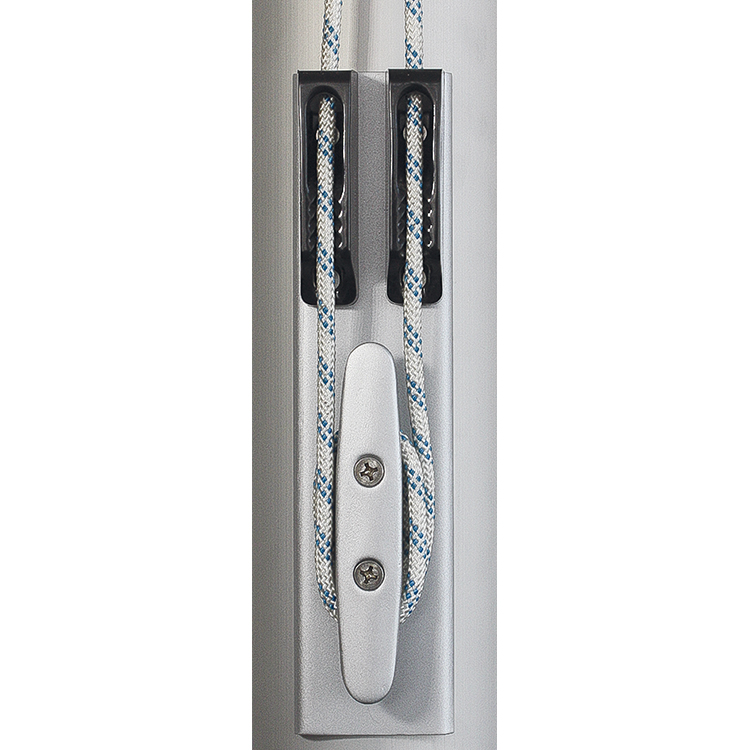

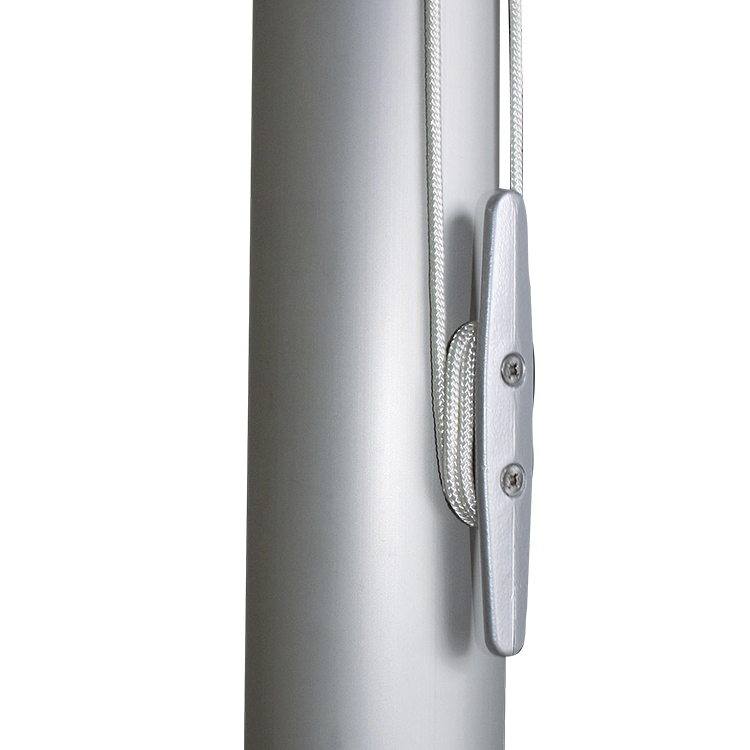

The external halyard with pulley and cleat is the standard hoisting device: affordable, robust and easy to operate. The high-grade EN AW-6082T6 alloy ensures lasting stability. The anodised layer to Euras standard DIN 17611 guarantees a durable, attractive surface finish.

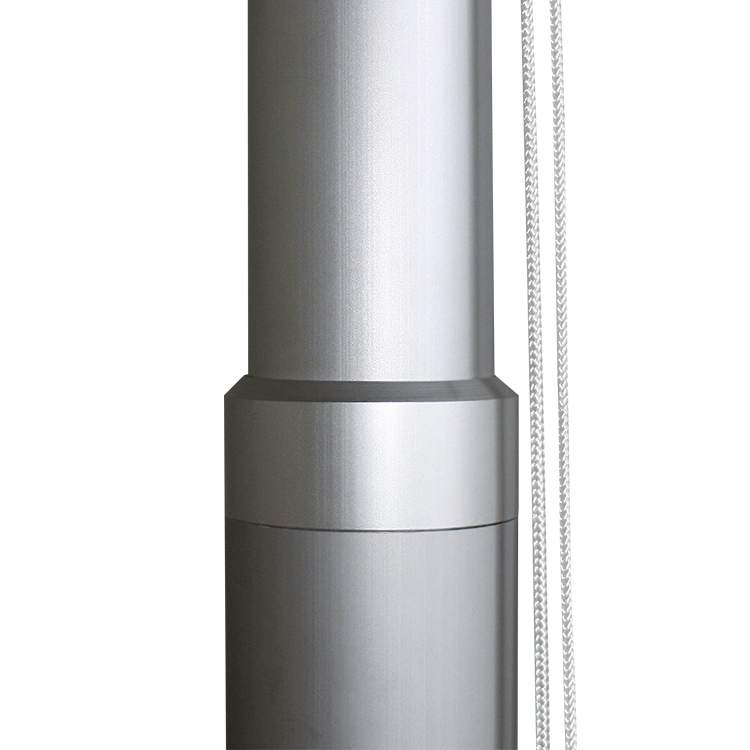

To avoid possible transport and storage problems, it is offered in a two-piece version. Assembly is done by slotting the individual lengths into one another with the least possible time and effort. Threaded holes for the securing screws are prepared at the factory, so all you need is a cross-head screwdriver.
Equipment
Technical data

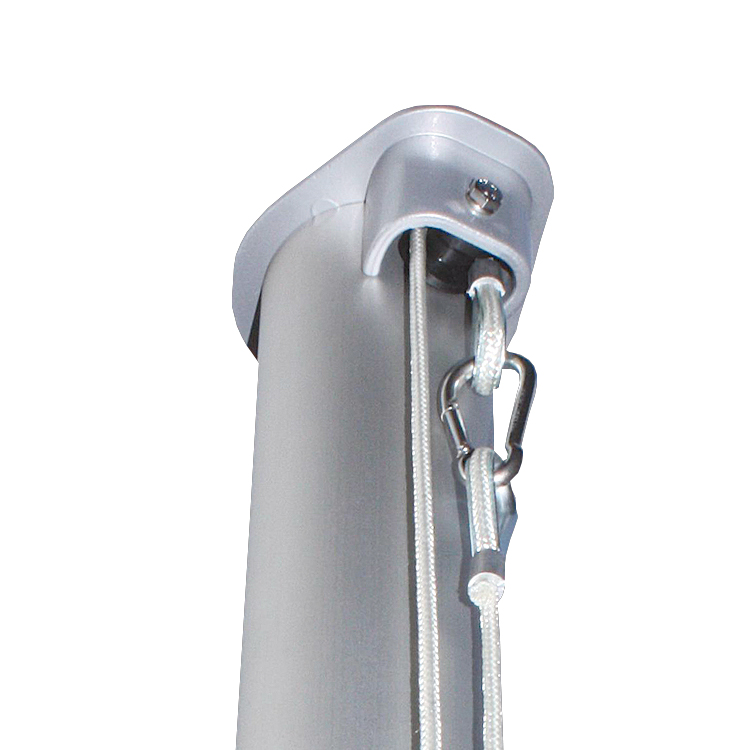

Flag finishing No special flag finishing is required. All common, freely flying types of flag up to a maximum size of 1.5 x 5 m can be hoisted. The topmost flag carabiner is hooked into the thimble crimp of the halyard, the lower carabiners around the halyard.
Suitable accessories for safe installation and use.
With a first order this accessory is already included in the set – you do not need to order it separately.
| Nominal height in m | Flag size in cm |
| 5 | 80x200 |
| 6 | 100x300 |
| 7 | 150x350 |
| 8 | 100x400 |
| 9 | 120x500 |
| 10-12 | larger |
| Nominal height in m | Flag size in cm |
| 5 | 120x80 |
| 6 | 150x120 |
| 7 | 180x120 |
| 8 | 200x120 |
| 9 | 225x150 |
| 10 | 250x150 |
| 12 | 300x200 |
Germany is divided into four wind zones under DIN EN 1991-1-4/NA. What matters is the basic wind velocity vb,0 at your installation site:
| Wind zone | vb,0 | approx. equals | typical location |
|---|---|---|---|
| Wind zone 1 | 22.5 m/s | 81 km/h | inland southern and central Germany |
| Wind zone 2 | 25.0 m/s | 90 km/h | large parts of central and eastern Germany |
| Wind zone 3 | 27.5 m/s | 99 km/h | inland northern Germany, coastal hinterland |
| Wind zone 4 | 30.0 m/s | 108 km/h | North Sea and Baltic coasts and islands |
Which wind zone applies to me? The classification follows the district or independent city. You will find the full map here:
» Download the German wind zone map as a PDF
What does the figure on the product page mean? In the technical data of our poles you will find a statement such as "without flag to DIN EN 1991-1-4/NA wind zone I". This is the structural verification of the pole tube – it states up to which wind zone the pole has been verified by calculation without a flag. This figure is not an exclusion criterion for higher wind zones, but the basis for the design.
I live in wind zone 2, 3 or 4 – what now? Then the configuration is decisive: the type of ground fixing (ground socket or tilting mount), foundation size, pole height and above all flag size. The same pole can often be used in a higher wind zone with a different fixing or a smaller flag. On several of our series, stability up to a nominal height of 9 m is provided as standard for wind zone 2 as well.
Please ask us: tell us the installation site (postcode), the pole height you want and the flag size – we will check suitability for your wind zone and tell you the right configuration. Telephone +49 9833 98894-0 or use our contact form.
Please note: stability at a specific site is always governed by the individual verification to DIN EN 1991-1-4/NA, taking into account terrain category, surrounding buildings and foundation. The flag must be taken down when a storm warning is issued.
