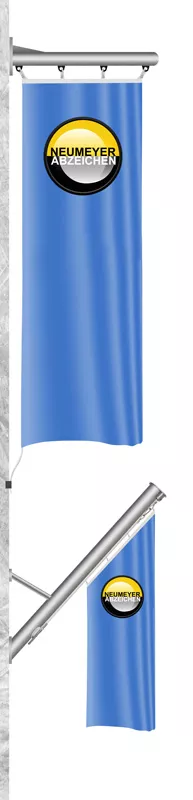

Wall bracket ZI90-W in aluminium for horizontal mounting, 1.20 m, Ø 90 mm has the item number 8135.16.
It fits poles with a tube diameter of 90 mm. The part is made of aluminium.
The longest variant in this series: with a 1.20 m projection, the ZI90-W holds the flag furthest from the façade, which makes it visible from sharper angles and avoids contact with the wall. The basis is a cylindrical aluminium tube with a 90 mm diameter plus a welded-on flange for horizontal mounting. The internal hoisting system allows operation from the ground, recommended up to a mounting height of 6 m above the operating point. A triple and a single pulley block on the underside of the tube guide the halyard over plastic pulleys. The entry and exit points are approx. 15 cm from the wall above the triple pulley block, with the single pulley block about 6 cm from the outer end of the tube at the end cap.
