7 m cylindrical aluminium flagpole, ZD90, non-hoisting, outrigger / gallows arm

7 m cylindrical aluminium flagpole, ZD90, non-hoisting, outrigger / gallows arm

7 m cylindrical aluminium flagpole, ZD90, non-hoisting, outrigger / gallows arm
Show reviews »
Quality seals and awards
Produktdetails

Key information at a glance

Item no. 8102.07
Hoisting typeOutrigger
Pole shapecylindrical
MaterialAluminium
Height7 m
MastdurchmesserØ 90 mm
Advice by phone
Our hotline is available Mon–Thu 7:30am–5pm and Fri until 12:30pm: Our hotline number
Freight delivery to Germany from €88
Exact price by postcode in the basket · volume discounts on multiple poles
Volume discount on flagpoles from 3 units · details
from 3−2 % from 6−3 % from 9−4 % from 12−5 % from 15−6 % from 20−7 % from 25−8 %
Applies to poles only, delivered to the same unloading point and the same customer. The discount is deducted automatically in the basket.
Your price
net € 328,00 € 390,32
incl. VAT plus Freight costs
Delivery time approx. 10–15 working days
Order the accessories you need at the same time

The ground socket is not included. It is set into the concrete foundation – after which the pole is simply inserted.

Aluminium ground socket for cylindrical aluminium poles with Ø 90 mm Aluminium ground socket for cylindrical aluminium poles with Ø 90 mm
+ 49,98 €
Add to basket now
Response usually within 1 hour (Mon–Fri) · no obligation & free of charge
5-year warranty
Purchase on account for public authorities & municipalities
Buyer protection & secure payment
Payment methods: Visa Mastercard girocard PayPal Klarna Wero
7 m cylindrical aluminium flagpole, ZD90, non-hoisting, outrigger / gallows arm
7 m cylindrical aluminium flagpole, ZD90, non-hoisting, outrigger / gallows arm Item no. 8102.07
– incl. VAT · incl. accessories
  • Wind-stable, torsion-resistant construction for permanent outdoor use
  • Anodised aluminium – corrosion-free, UV- and weather-resistant
  • 5-year warranty · Made in Germany
  • As a complete set: ground socket & accessories can be ordered with it

7 m cylindrical aluminium flagpole, ZD90, non-hoisting, outrigger / gallows arm has the item number 8102.07 and is characterised by nominal height 7 m, pole diameter 90 mm, outrigger, cylindrical design. This version is available from 390,32 € incl. VAT.

7 m above ground – which means the pole is the typical choice for company entrances, car dealerships and club grounds. We recommend portrait flags of 350 to 500 cm in length, or landscape formats around 150 × 250 cm. The pole is set into a ground socket cast in concrete; the stated 7 m are the visible height above ground, so the overall length is correspondingly greater. The ground socket has to match the 90 mm diameter. You will find the matching foundation plan in the „Instructions“ tab. aluminium as the material and a cylindrical tube cross-section of 90 mm characterise this design. The outrigger arm holds the flag clear of the pole so it stays readable even when there is no wind.

The most affordable of the bracket/gallows poles from the modular range of cylindrical pole tubes with a 90 mm diameter. To hoist the flag the pole has to be laid down, which we do not recommend. If available, the flag can be raised using a lifting platform or scaffolding. If you decide in favour of the ZD90, we strongly recommend installing a tilting mount.

Equipment

  • Pole tube (without groove)

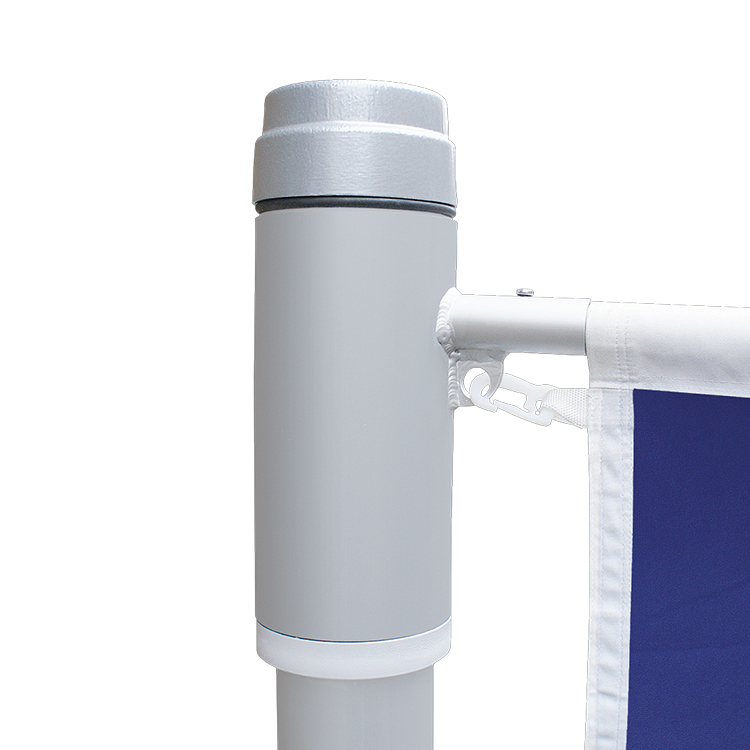

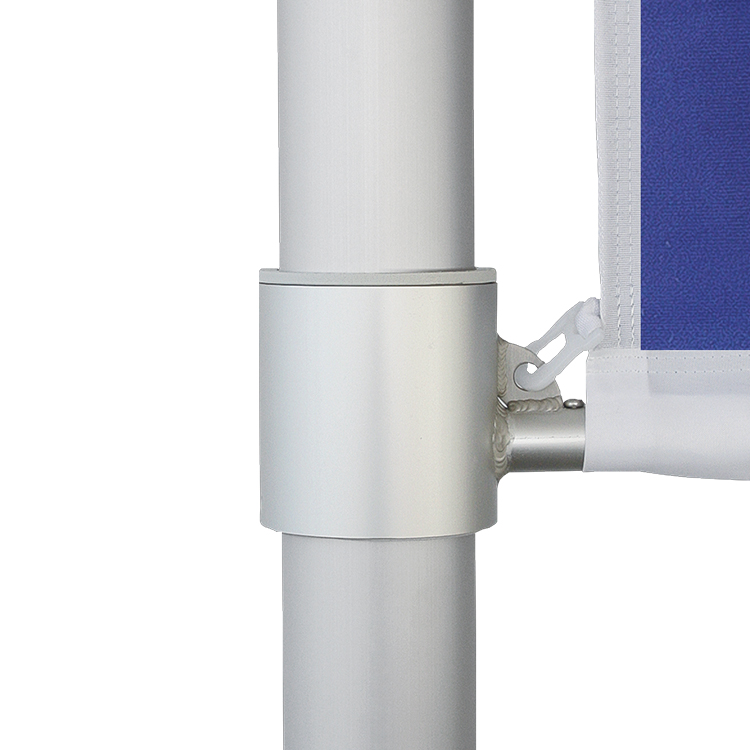

  • elegant, rotatably mounted collar (rotor), maintenance-free, with a removable telescopic bracket in aluminium, silver anodised, Ø 25/20 mm, infinitely adjustable from 1.00 to 1.60 m

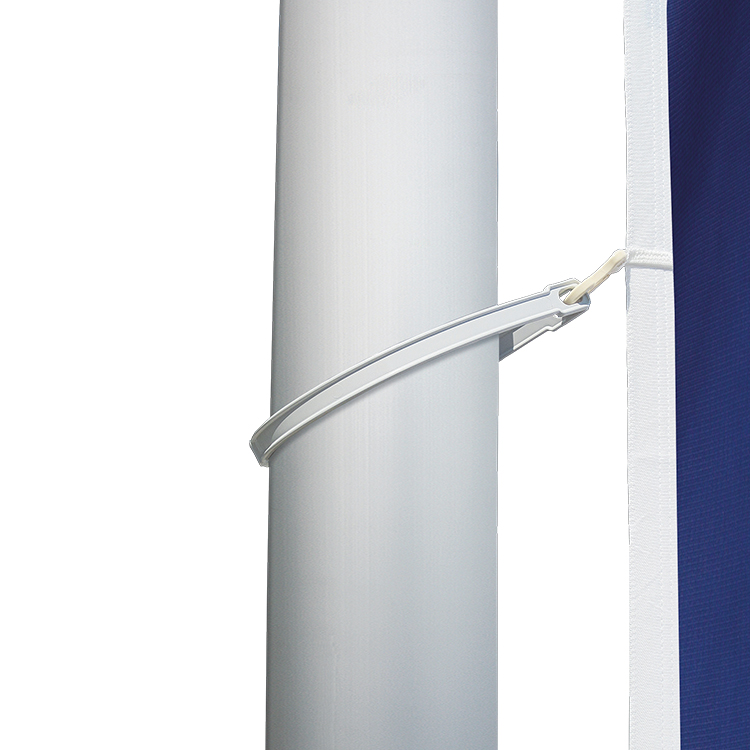

  • 4 flag slings

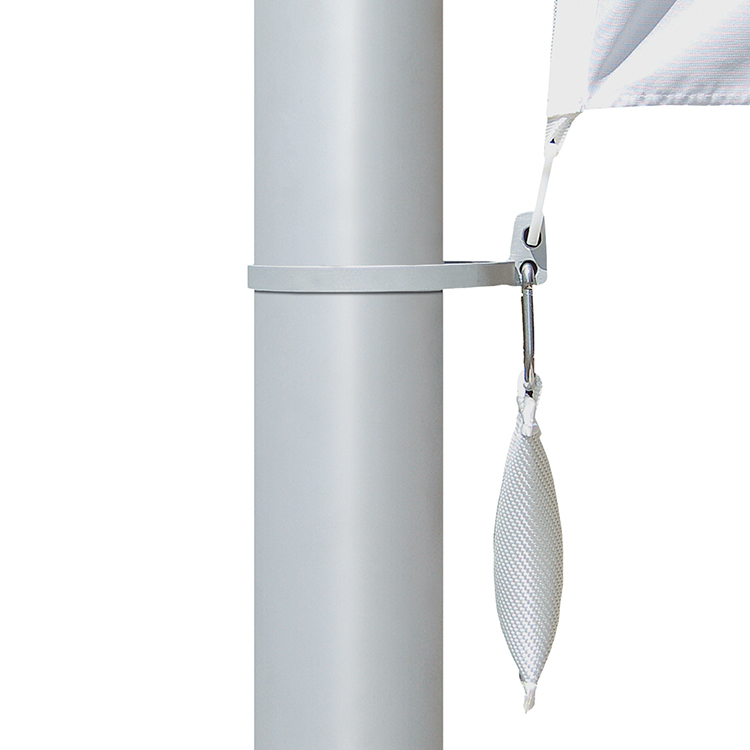

  • no riding up of the flag in gusts thanks to the flag weight on the lowest flag carabiner

Technical data

Nominal height 7.00 m, total length 7.70 m, D = 90 mm, telescopic bracket 100/160 cm, cylindrical pole tube without groove, silver anodised 20 my, 4 flag slings, flag weight

Flag finishing

Side tape with hooks. Hollow hem along the top edge of the fabric, Ø 30.00 mm, open on both sides. The topmost hook must be sewn on directly below the hollow hem. Hook spacing max. 1.00 m. The side carabiner hooks are hooked into the loosely supplied flag slings. The flag slings rotate along with the flag under wind load. Flag sizes (max.) of 1.50 x 4.00 m

Frequently asked questions about this pole

Foundation plan for this pole (PDF) Dimensions of the concrete foundation, installation depth of the ground socket and concrete grade – ready to print for your groundworks contractor.
Operation & maintenance The assembly and operating instructions supplied with the pole are authoritative. For guidance: the wind strength above which the flag should be taken down and how to bring it in gently and store it. Visually inspect the rope, pulley, ground socket and pole base regularly, and additionally after a storm.

Key technical data

Pole tube
Ø 90 mm, wall thickness 3.0 mm
Max. flag size
max. 4.00 x 1.50 m (portrait)
Outrigger
Telescopic outrigger 100 – 160 cm, Ø 25 mm
Does the flag turn?
Yes – 360° rotating outrigger on a rotor.
Do flagpoles need a foundation?
Yes, flagpoles should always have a foundation. As a rule, a ground socket is set in concrete and the flagpole is then simply inserted into it. This means the pole can easily be removed from the socket again at any time.
Which concrete is needed for the foundation?
Concrete C 25/30 – you will also find this information on the foundation plan. Concrete of grade C 25/30 is available from specialist suppliers (concrete plants, builders' merchants).
Do the foundation and the flagpole have to be installed by a specialist company?
With a little practical skill, any DIY enthusiast can install the foundation and the flagpole themselves following the instructions supplied. It is not strictly necessary for this to be done by a specialist company.
What are the advantages of an outrigger pole?
Your flag stays clearly "readable" even without wind. Its life expectancy is also higher than that of a flag left to flap about wildly.
Which flag size do I need for which pole?
We recommend the following sizes:

Flags and banners, portrait format:
Nominal height in m Flag size in cm
5 80x200
6 100x300
7 150x350
8 100x400
9 120x500
10-12 larger

Hoisted flags, landscape format:
Nominal height in m Flag size in cm
5 120x80
6 150x120
7 180x120
8 200x120
9 225x150
10 250x150
12 300x200
Is planning permission required to erect a flagpole?
The erection of flagpoles is regulated differently by each building authority, town or municipality. We therefore recommend asking your responsible authority whether planning permission is required. Here is a list of the permit rules, sorted by federal state. No guarantee is given.
