7 m cylindrical aluminium flagpole, ZA90, internal halyard, outrigger / gallows arm has the item number 8105.07 and is characterised by nominal height 7 m, pole diameter 90 mm, outrigger, cylindrical design. This model is available from 553,35 € incl. VAT.
At a nominal height of 7 m, the pole is the typical choice for company entrances, car dealerships and club grounds. When choosing a flag, aim for 350 to 500 cm in length in portrait format, or around 150 × 250 cm in landscape. The foundation holds a ground socket, out of which the 7 m nominal height projects. The ground socket has to match the 90 mm diameter. You will find the matching foundation plan in the „Instructions“ tab. The tube is made of aluminium and has a cylindrical profile with a diameter of 90 mm. The outrigger arm holds the flag clear of the pole so it stays readable even when there is no wind.

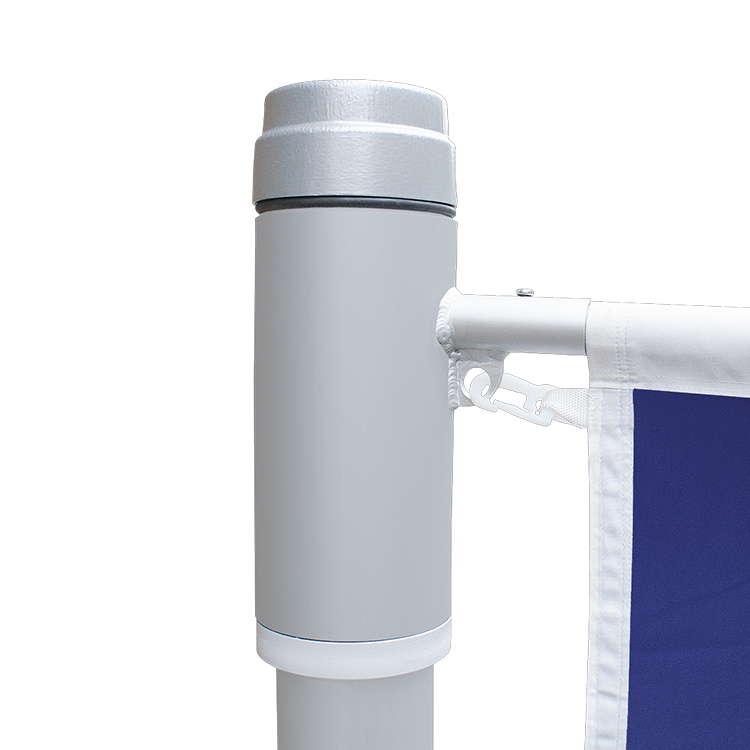

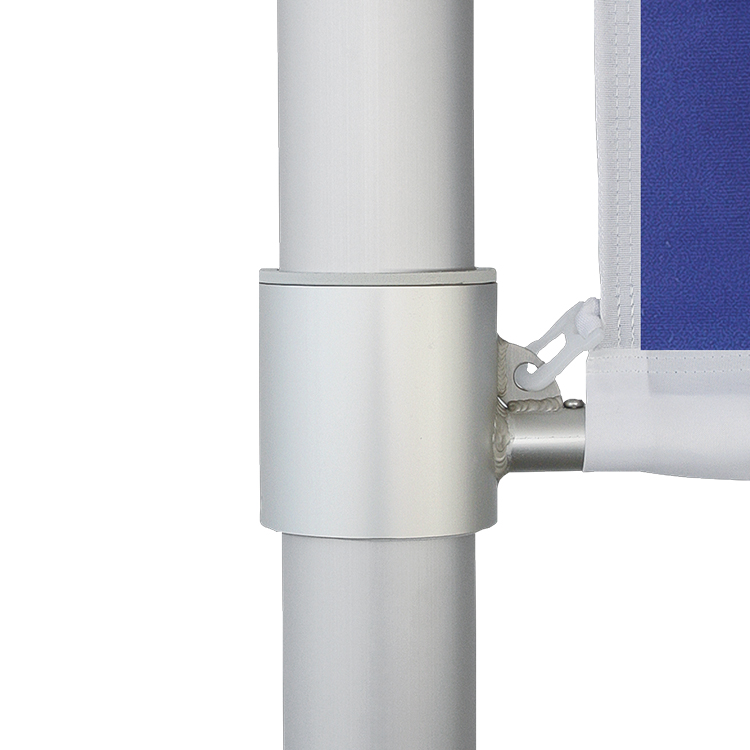

Flagpoles with a telescopic bracket ensure advertising impact regardless of the wind. The flag is spread out and easy to read at all times.
High operating comfort and extensive theft protection thanks to an internal halyard proven tens of thousands of times over characterise this hoisting system.

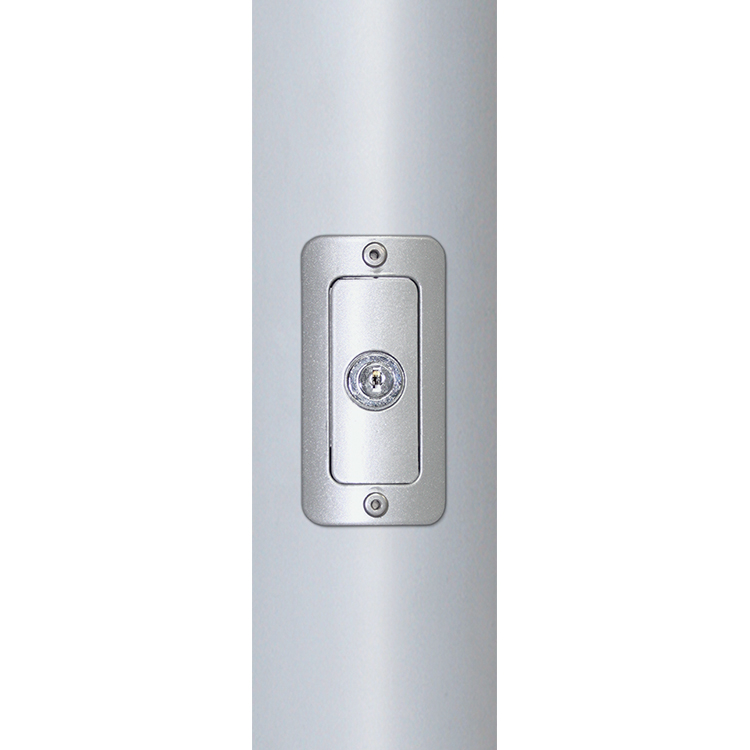

ZA90: perlon halyard Ø 5 mm running inside the pole tube, control housing with lockable door and quick-fixing system (SFS) for the halyard.
Delivery: ready to hoist
Nominal height 7.00 m, total length 7.70 m, D = 90 mm, telescopic bracket 100/160 cm, cylindrical pole tube with groove, EN AW-6082T6, silver anodised 20 my, perlon halyard, internal halyard, control door with bolt lock, 4 flag slings, flag weight 450 g, with carabiner.

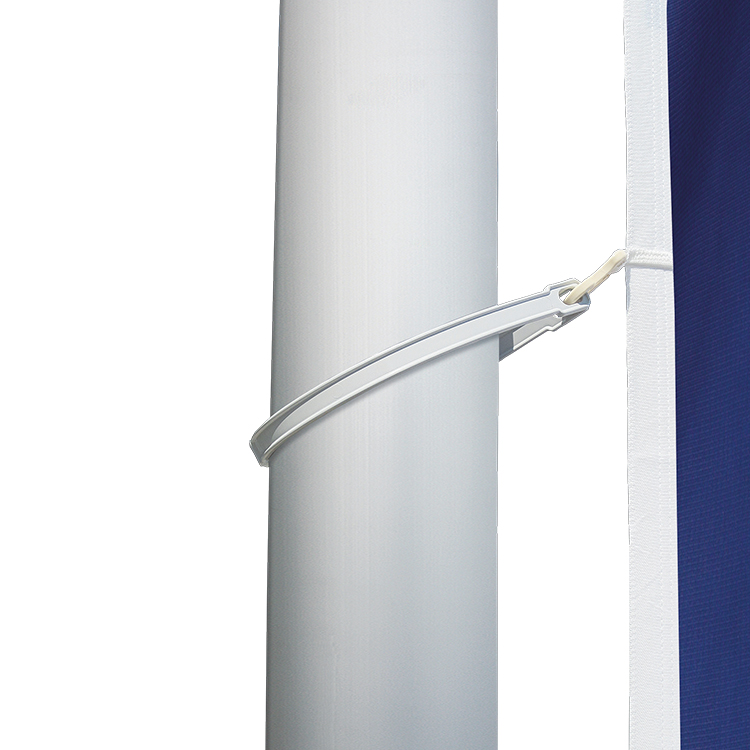

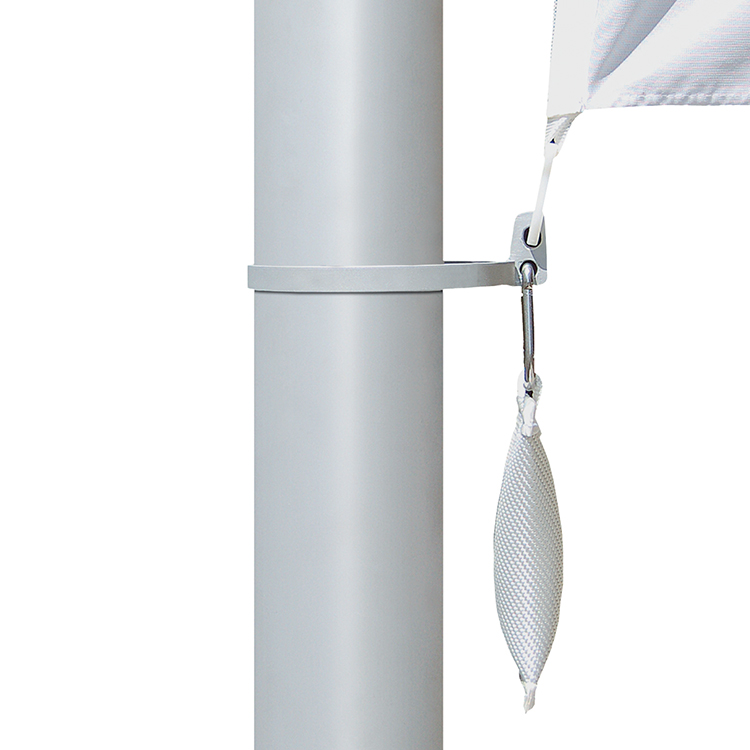

Side tape with hooks. Hollow hem along the top edge of the fabric, Ø 30.00 mm, open on both sides. The topmost hook must be sewn on directly below the hollow hem. Hook spacing max. 1.00 m. To raise the flag it is slid onto the telescopic bracket by its hollow hem. The side carabiner hooks are hooked into the loosely supplied flag slings. The flag slings rotate along with the flag under wind load. Flag sizes (max.) of 1.50 x 4.00 m
Suitable accessories for safe installation and use.
With a first order this accessory is already included in the set – you do not need to order it separately.
Matching accessories, mountings and variants for this item.
Custom-made – excluded from the right of withdrawal
| Nominal height in m | Flag size in cm |
| 5 | 80x200 |
| 6 | 100x300 |
| 7 | 150x350 |
| 8 | 100x400 |
| 9 | 120x500 |
| 10-12 | larger |
| Nominal height in m | Flag size in cm |
| 5 | 120x80 |
| 6 | 150x120 |
| 7 | 180x120 |
| 8 | 200x120 |
| 9 | 225x150 |
| 10 | 250x150 |
| 12 | 300x200 |
