10 m aluminium pole, ZA100K, Ø 100 mm, internal halyard, crank drive, bracket/gallows arm, incl. tilting mount

10 m aluminium pole, ZA100K, Ø 100 mm, internal halyard, crank drive, bracket/gallows arm, incl. tilting mount

10 m aluminium pole, ZA100K, Ø 100 mm, internal halyard, crank drive, bracket/gallows arm, incl. tilting mount
Show reviews »
Quality seals and awards
Produktdetails

Key information at a glance

Item no. 8116.20
Hoisting typeOutrigger
Pole shapecylindrical
MaterialAluminium
Height10 m
MastdurchmesserØ 100 mm
Advice by phone
Our hotline is available Mon–Thu 7:30am–5pm and Fri until 12:30pm: Our hotline number
Freight delivery to Germany from €108
Exact price by postcode in the basket · volume discounts on multiple poles
Volume discount on flagpoles from 3 units · details
from 3−2 % from 6−3 % from 9−4 % from 12−5 % from 15−6 % from 20−7 % from 25−8 %
Applies to poles only, delivered to the same unloading point and the same customer. The discount is deducted automatically in the basket.
Your price
net € 1.066,00 € 1.268,54
incl. VAT plus Freight costs
Delivery time approx. 10–15 working days
Add to basket now
Response usually within 1 hour (Mon–Fri) · no obligation & free of charge
5-year warranty
Purchase on account for public authorities & municipalities
Buyer protection & secure payment
Payment methods: Visa Mastercard girocard PayPal Klarna Wero
10 m aluminium pole, ZA100K, Ø 100 mm, internal halyard, crank drive, bracket/gallows arm, incl. tilting mount
10 m aluminium pole, ZA100K, Ø 100 mm, internal halyard, crank drive, bracket/gallows arm, incl. tilting mount Item no. 8116.20
– incl. VAT · incl. accessories
  • Wind-stable, torsion-resistant construction for permanent outdoor use
  • Anodised aluminium – corrosion-free, UV- and weather-resistant
  • 5-year warranty · Made in Germany
  • As a complete set: ground socket & accessories can be ordered with it

10 m aluminium pole, ZA100K, Ø 100 mm, internal halyard, crank drive, bracket/gallows arm, incl. tilting mount has the item number 8116.20 and is characterised by nominal height 10 m, pole diameter 100 mm, outrigger, cylindrical design. Prices start at 1.268,54 € incl. VAT.

Designed for 10 m of visible height, the pole is designed for prestigious locations, industrial sites and groups of poles. Suitable flags are portrait formats from 500 to 700 cm in length, or landscape flags around 150 × 350 cm. The pole is set into a ground socket in a concrete foundation; the 10 m nominal height is measured from ground level. The pole diameter of 100 mm determines the matching socket size. You will find the matching foundation plan in the „Instructions“ tab. The material used is aluminium; the pole tube is cylindrical with a diameter of 100 mm. The outrigger arm holds the flag clear of the pole so it stays readable even when there is no wind.

Flagpoles with a telescopic bracket ensure advertising impact regardless of the wind. The flag is easy to read at all times.

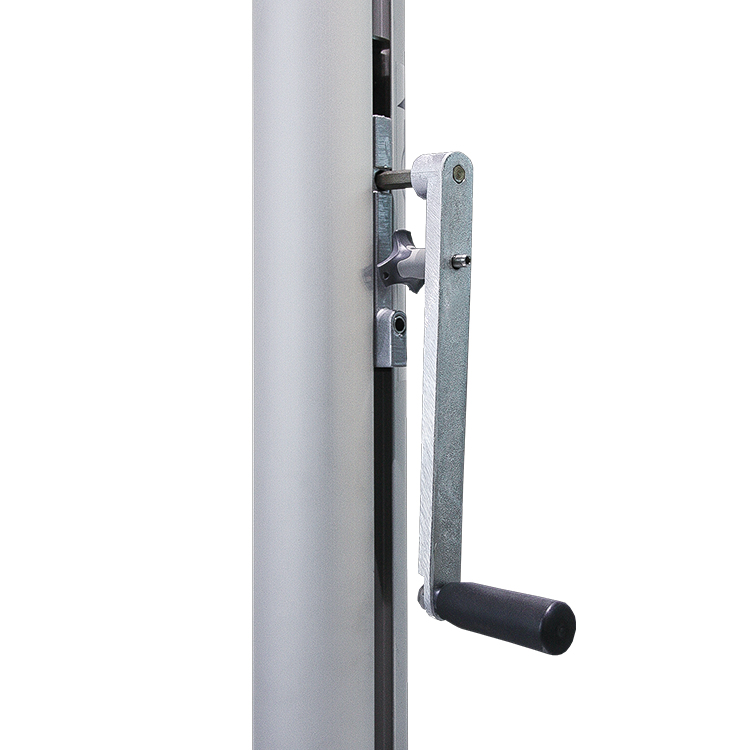

High operating comfort and extensive theft protection thanks to an internal halyard proven tens of thousands of times over characterise this hoisting system. Stainless steel rope running inside the pole tube with the new FlagLift crank hoisting system. The high-grade alloy ensures lasting stability. The anodised layer to Euras standard DIN 17611 guarantees a durable, attractive surface finish.

Equipment

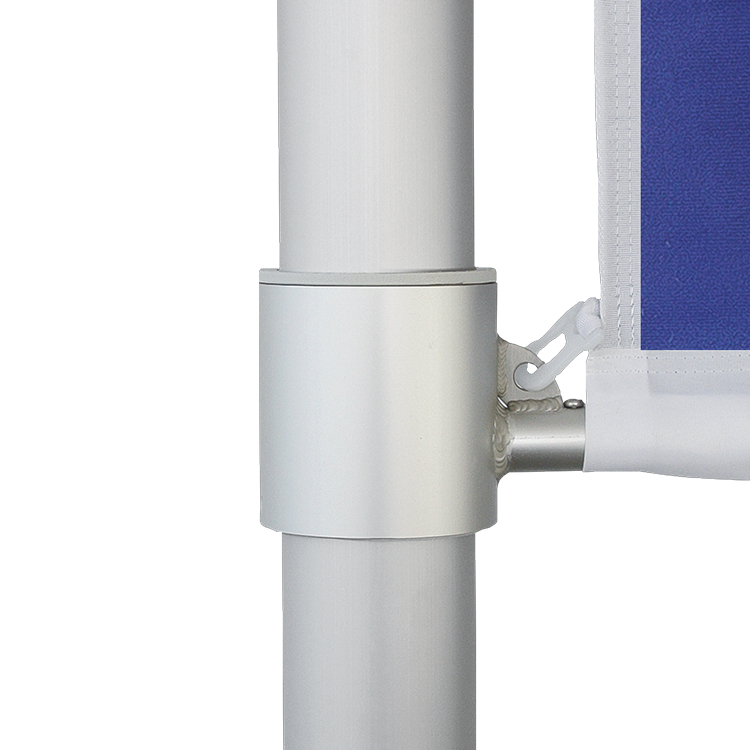

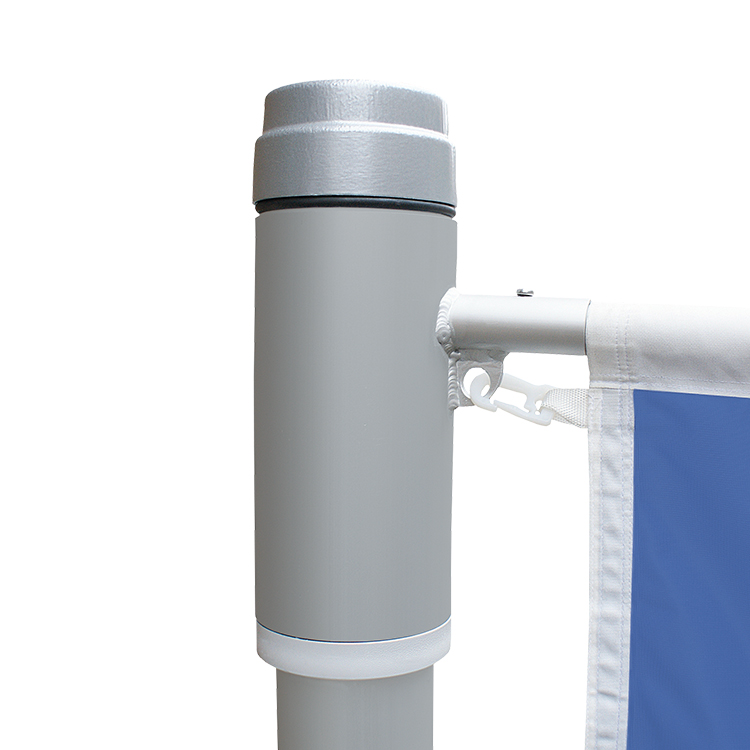

  • Elegant, rotatably mounted collar (rotor), maintenance-free, with a removable telescopic bracket in aluminium, silver anodised, Ø 25/20 mm, infinitely adjustable from 1.00 to 1.60 m
  • safe and durable hoisting system running inside the pole tube

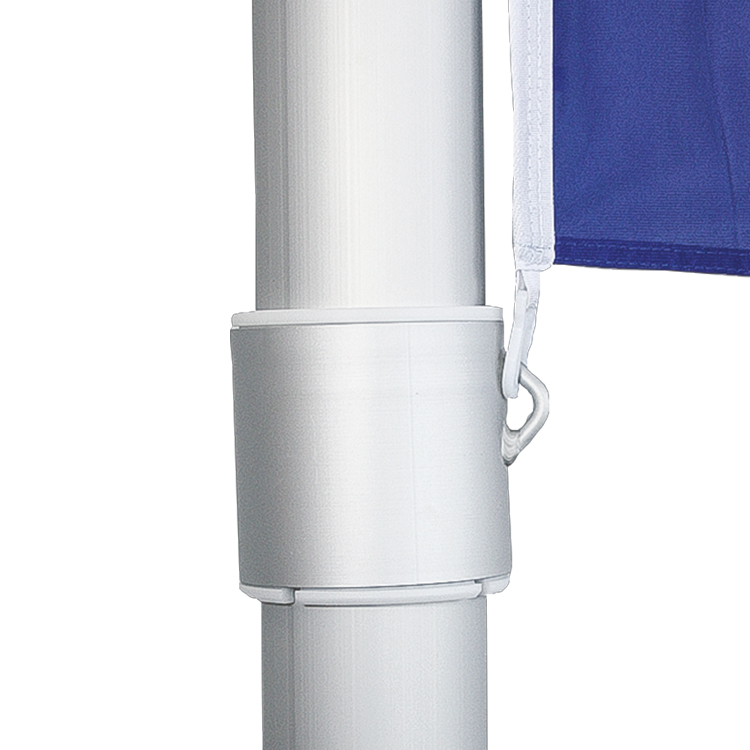

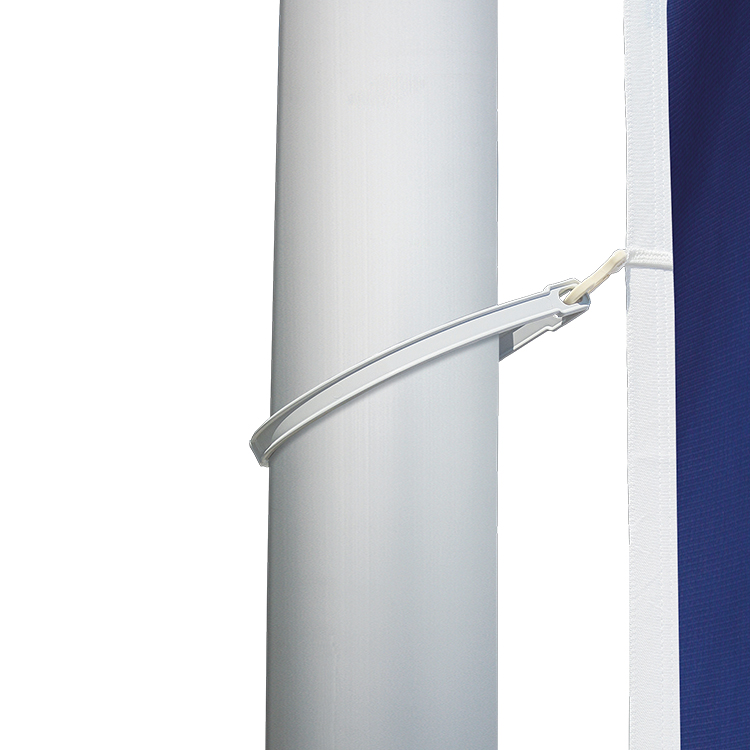

  • 5 flag slings

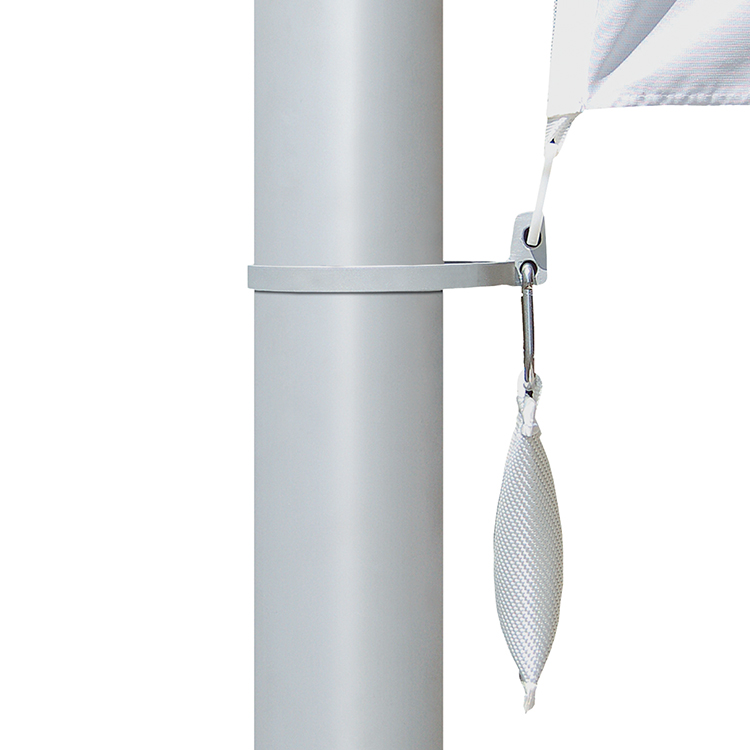

  • no riding up of the flag in gusts thanks to the flag weight on the lowest flag carabiner

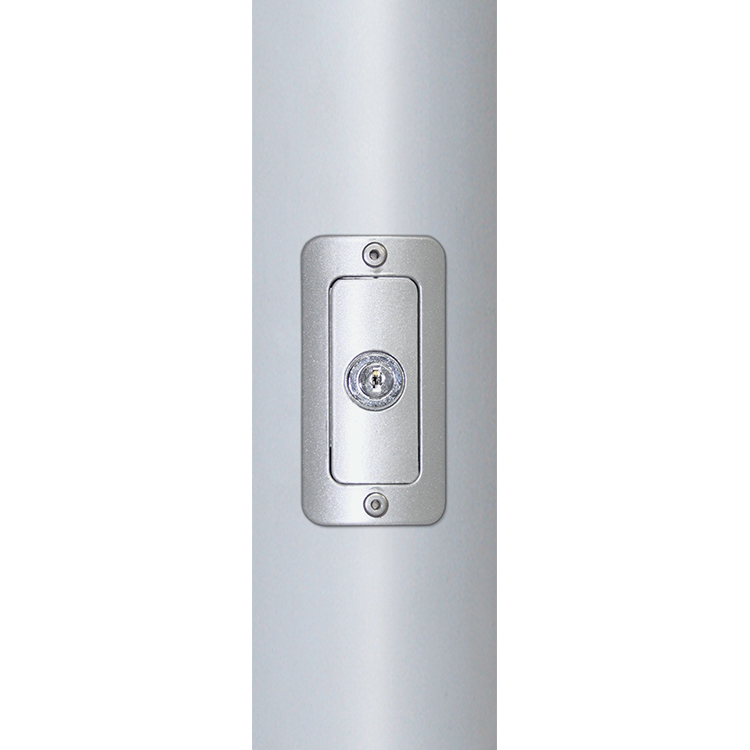

  • stainless steel halyard, internal halyard, control door with bolt lock

Delivery: ready to hoist

Technical data

Nominal height 10.00 m, total length 10.00 m, D = 100 mm, telescopic bracket 100/160 cm, cylindrical pole tube with groove, EN AW-6082T6, silver anodised 20 my,

Flag finishing

Side tape with hooks. Hollow hem along the top edge of the fabric, Ø 30.00 mm, open on both sides. The topmost hook must be sewn on directly below the hollow hem. Hook spacing max. 1.00 m. To raise the flag it is slid onto the telescopic bracket by its hollow hem. The side carabiner hooks are hooked into the loosely supplied flag slings. The flag slings rotate along with the flag under wind load. Flag sizes (max.) of 1.50 x 5.00 m.

The tilting mount on an anchor cage is included in the price.

Frequently asked questions about this pole

Foundation plan for this pole (PDF) Dimensions of the concrete foundation, installation depth of the ground socket and concrete grade – ready to print for your groundworks contractor.
Operation & maintenance The assembly and operating instructions supplied with the pole are authoritative. For guidance: the wind strength above which the flag should be taken down and how to bring it in gently and store it. Visually inspect the rope, pulley, ground socket and pole base regularly, and additionally after a storm.

Key technical data

Pole tube
Ø 100 mm, wall thickness 5.0 mm
Max. flag size
max. 5.00 x 1.50 m (portrait)
Outrigger
Telescopic outrigger 100 – 160 cm, Ø 25 mm
Does the flag turn?
Yes – 360° rotating outrigger on a rotor.
Do flagpoles need a foundation?
Yes, flagpoles should always have a foundation. As a rule, a ground socket is set in concrete and the flagpole is then simply inserted into it. This means the pole can easily be removed from the socket again at any time.
Which concrete is needed for the foundation?
Concrete C 25/30 – you will also find this information on the foundation plan. Concrete of grade C 25/30 is available from specialist suppliers (concrete plants, builders' merchants).
Do the foundation and the flagpole have to be installed by a specialist company?
With a little practical skill, any DIY enthusiast can install the foundation and the flagpole themselves following the instructions supplied. It is not strictly necessary for this to be done by a specialist company.
What does series ZA90K mean?
Here the K stands for a pole with a winch drive
What are the advantages of an outrigger pole?
Your flag stays clearly "readable" even without wind. Its life expectancy is also higher than that of a flag left to flap about wildly.
Which flag size do I need for which pole?
We recommend the following sizes:

Flags and banners, portrait format:
Nominal height in m Flag size in cm
5 80x200
6 100x300
7 150x350
8 100x400
9 120x500
10-12 larger

Hoisted flags, landscape format:
Nominal height in m Flag size in cm
5 120x80
6 150x120
7 180x120
8 200x120
9 225x150
10 250x150
12 300x200

Question not listed? All questions & answers · or call us: 09833 98894-0
