You are here: Flagpole range > FlagLight US flagpole > FlagLight US flagpole, nominal height 8.0 m
FlagLight US flagpole, nominal height 8.0 m

FlagLight US flagpole, nominal height 8.0 m

FlagLight US flagpole, nominal height 8.0 m
Show reviews »
Quality seals and awards
Produktdetails

Key information at a glance

Item no. 8165.13
Hoisting typeInternal halyard
Pole shapecylindrical
MaterialAluminium
Height8 m
MastdurchmesserØ 100 mm
Advice by phone
Our hotline is available Mon–Thu 7:30am–5pm and Fri until 12:30pm: Our hotline number
Freight delivery to Germany from €98
Exact price by postcode in the basket · volume discounts on multiple poles
Volume discount on flagpoles from 3 units · details
from 3−2 % from 6−3 % from 9−4 % from 12−5 % from 15−6 % from 20−7 % from 25−8 %
Applies to poles only, delivered to the same unloading point and the same customer. The discount is deducted automatically in the basket.
Your price
net € 1.734,00 € 2.063,46
incl. VAT plus Freight costs
Delivery time approx. 10–15 working days
Add to basket now
Response usually within 1 hour (Mon–Fri) · no obligation & free of charge
5-year warranty
Purchase on account for public authorities & municipalities
Buyer protection & secure payment
Payment methods: Visa Mastercard girocard PayPal Klarna Wero
FlagLight US flagpole, nominal height 8.0 m
FlagLight US flagpole, nominal height 8.0 m Item no. 8165.13
– incl. VAT · incl. accessories
  • Wind-stable, torsion-resistant construction for permanent outdoor use
  • Anodised aluminium – corrosion-free, UV- and weather-resistant
  • 5-year warranty · Made in Germany
  • As a complete set: ground socket & accessories can be ordered with it

FlagLight US flagpole, nominal height 8.0 m has the item number 8165.13 and is characterised by nominal height 8 m, pole diameter 100 mm, internal halyard, cylindrical design. This model is available from 2.063,46 € incl. VAT.

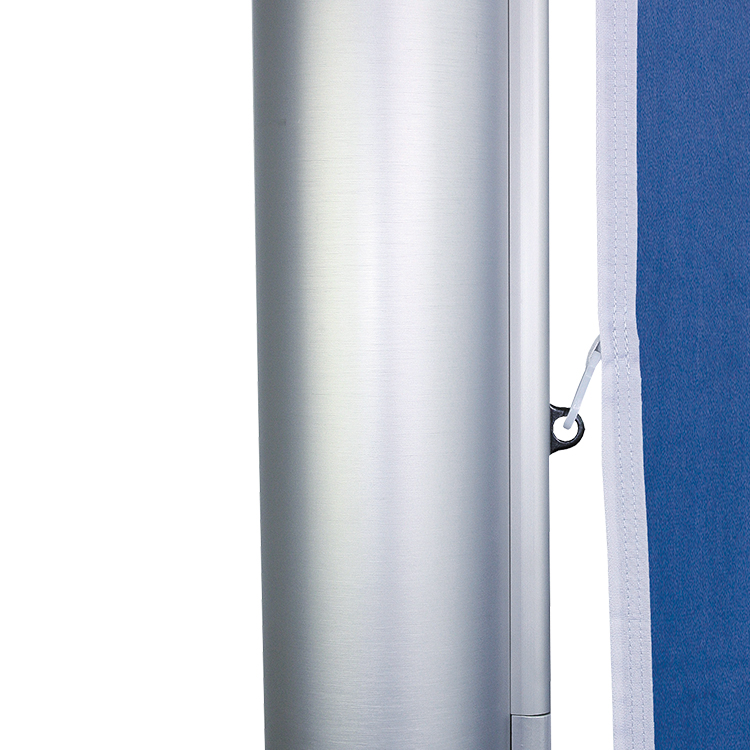

At a nominal height of 8 m, the pole remains highly visible even across larger commercial sites and car parks. When choosing a flag, aim for 400 to 550 cm in length in portrait format, or around 150 × 300 cm in landscape. The foundation holds a ground socket, out of which the 8 m nominal height projects. The pole diameter of 100 mm determines the matching socket size. You will find the matching foundation plan in the „Instructions“ tab. The tube is made of aluminium and has a cylindrical profile with a diameter of 100 mm. The internal halyard runs protected inside the pole and makes unauthorised lowering of the flag more difficult.

Flagpole FlagLight 8.0-US

Nominal height / total length 8.00 m,

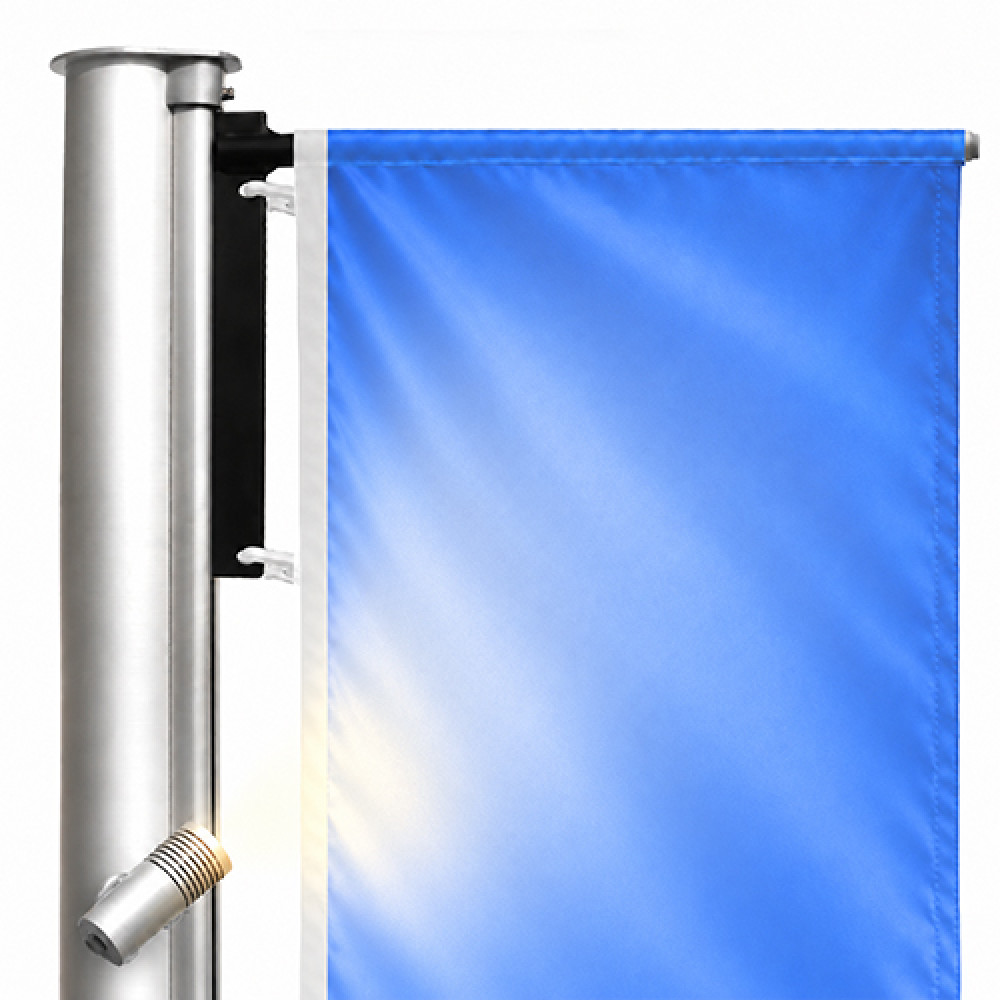

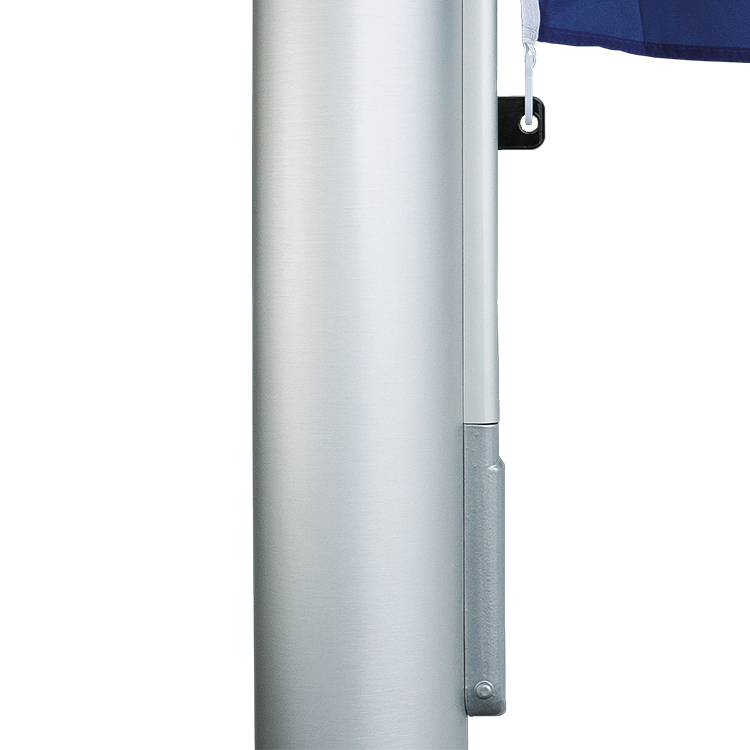

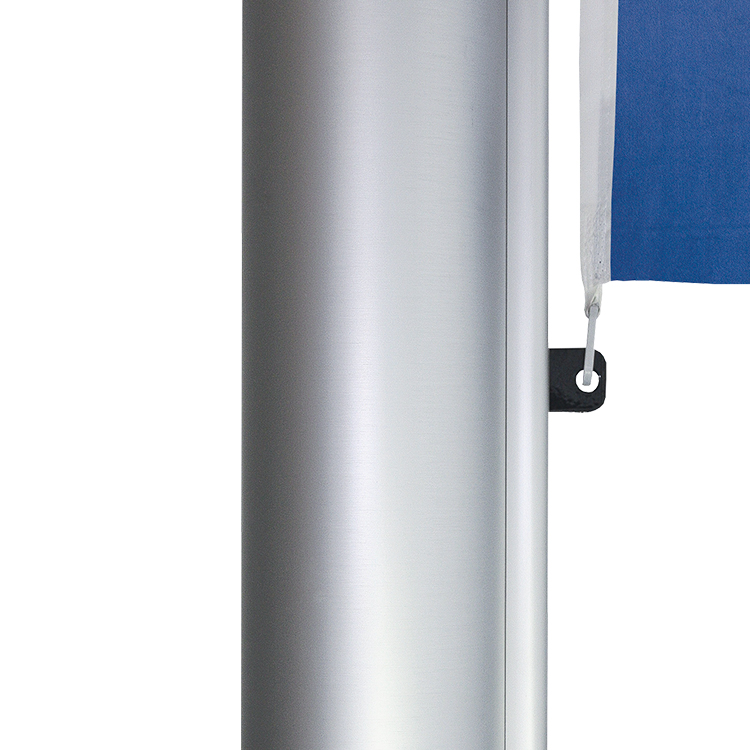

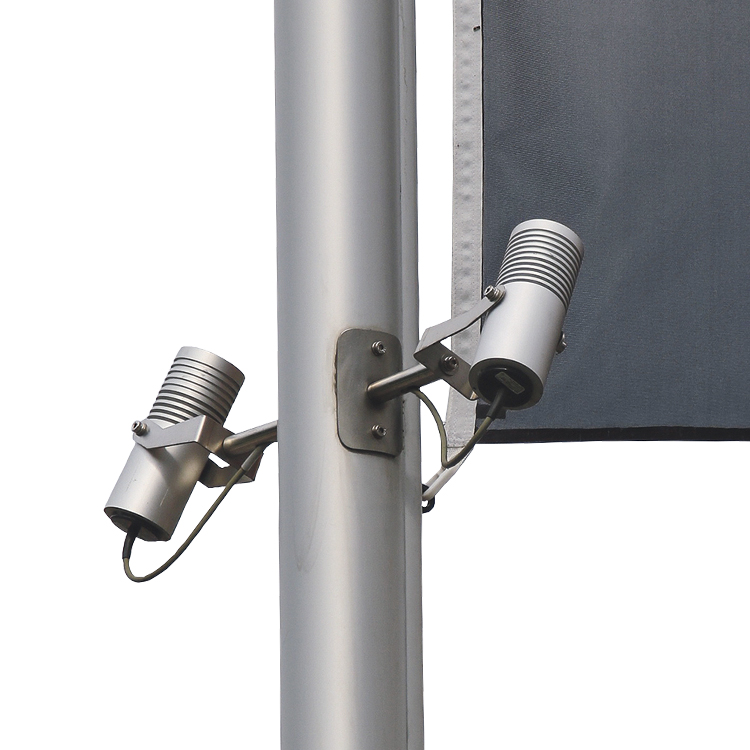

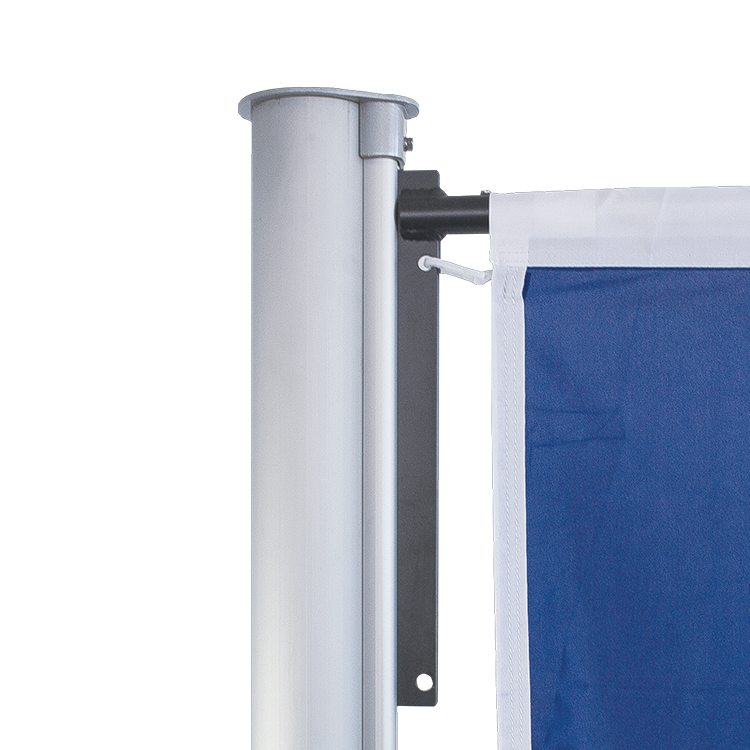

with flag lighting, cylindrical pole tube, Ø 100 x 5 mm, Material aluminium EN AW-6082T6, silver anodised, concealed hoisting device in a mounted C-rail, 4 plastic flag fabric holders, hoistable telescopic bracket 100/160 for max. flag width 1.50 m, captive flag tensioner in the C-rail, PES halyard, lockable cleat, 2 units mounted opposite each other on the pole tube LED spots for even flag lighting, Spots positioned at a height of 4.00 m, aimed at the pole tip, output 20 watt each, protection class IP 67, light colour 4000 K, light output 2200 lm each, beam angle 13°, electrical installation built into the rigid tube, consisting of: terminal box for the supply, transformer 230/36 V, rotating current contact, supply cable to LED spots with IP67 potting, 360° rotating bearing on a rigid tube, pole mounted on a tilting mount (size 314) with safety hinge, including base section (tilting mount and base section in steel, hot-dip galvanised),

pole tube stable when flying a flag of the size 4.00 x 1.50 m in accordance with DIN EN 1991-1-4/NA wind zone I,

Frequently asked questions about this pole

Foundation plan for this pole (PDF) Dimensions of the concrete foundation, installation depth of the ground socket and concrete grade – ready to print for your groundworks contractor.
Operation & maintenance The assembly and operating instructions supplied with the pole are authoritative. For guidance: the wind strength above which the flag should be taken down and how to bring it in gently and store it. Visually inspect the rope, pulley, ground socket and pole base regularly, and additionally after a storm.

Key technical data

Pole tube
Ø 100 mm, wall thickness 5.0 mm
Max. flag size
max. 4.00 x 1.50 m (portrait)
Outrigger
Telescopic outrigger 100 – 160 cm, Ø 25 mm
Does the flag turn?
Yes – the pole tube is mounted on a 360° swivel bearing.
Do flagpoles need a foundation?
Yes, flagpoles should always have a foundation. As a rule, a ground socket is set in concrete and the flagpole is then simply inserted into it. This means the pole can easily be removed from the socket again at any time.
Which concrete is needed for the foundation?
Concrete C 25/30 – you will also find this information on the foundation plan. Concrete of grade C 25/30 is available from specialist suppliers (concrete plants, builders' merchants).
Do the foundation and the flagpole have to be installed by a specialist company?
With a little practical skill, any DIY enthusiast can install the foundation and the flagpole themselves following the instructions supplied. It is not strictly necessary for this to be done by a specialist company.
What are the advantages of an internal hoisting mechanism?
Flag and pole are considerably better protected against theft and vandalism. Poles with an internal hoisting mechanism are often more convenient to operate as well (e.g. by winch). It is less susceptible to dirt and moisture. The internal halyard is also quieter, since it cannot knock against the pole.
Is it possible to retrofit a flagpole with an outrigger?
Converting ZI poles with an internal halyard to ZA poles is no problem. The pole is then fitted with an outrigger that can be hoisted. The Z series with a standard hoisting mechanism can be converted to ZD, which cannot be hoisted. For other poles, please enquire.
What are the advantages of an illuminated flagpole?
Your flag is clearly visible at night and from a distance. You also have the option of combining car park lighting with the pole lighting. Flagpole lighting supports relationship marketing.

Question not listed? All questions & answers · or call us: 09833 98894-0
