Aluminium banner pole TMZ100, 6 m has the item number 8149.02 and is characterised by nominal height 6 m, standard hoisting system, cylindrical design. The variant can be supplied from 712,81 € incl. VAT.
At 6 m of visible pole height, the pole is the typical choice for company entrances, car dealerships and club grounds. For poles of this height we recommend portrait flags of roughly 300 to 400 cm in length – as a rule of thumb, a flag should be about half to two thirds of the nominal height. Installation requires a foundation with a ground socket – the 6 m nominal height refers to the visible section above ground level. You will find the matching foundation plan in the „Instructions“ tab. The standard hoisting system guides the rope on the outside of the pole and is straightforward to operate.
Aluminium banner pole TMZ100
Nominal height 6.00 m, total length 6.80 m

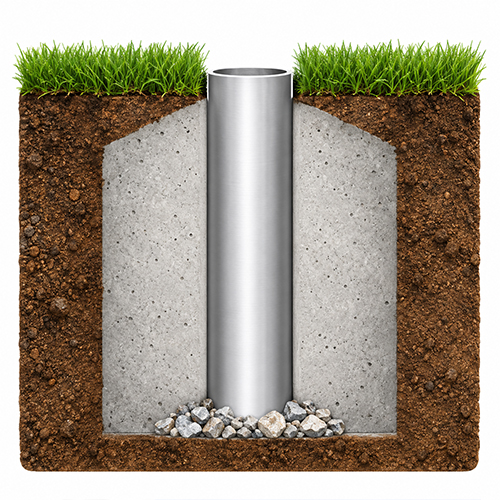

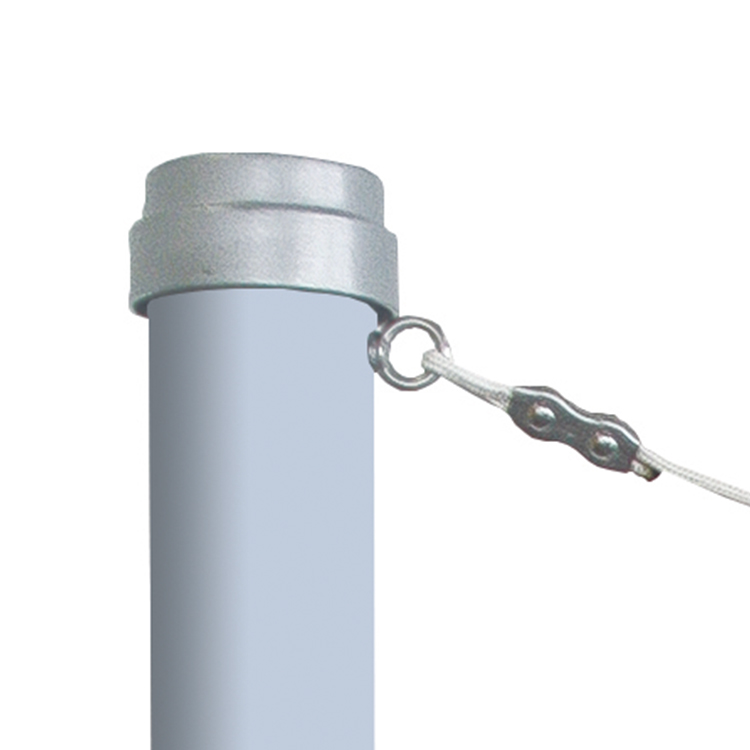

Cylindrical pole tube, D = 100 x 5 mm Material EN AW-6082T6, silver anodised with 2 ring eyelets M8/A2, spacing 1 m for a max. banner area of 5.00 x 0.70 m (3.50 m²) at 40% wind permeability and a pole-to-pole spacing of max. 9.00 m Pole base with internal steel tube reinforcement, Pole installed in a galvanised steel centring sleeve
Suitable accessories for safe installation and use.
With a first order this accessory is already included in the set – you do not need to order it separately.
| Nominal height in m | Flag size in cm |
| 5 | 80x200 |
| 6 | 100x300 |
| 7 | 150x350 |
| 8 | 100x400 |
| 9 | 120x500 |
| 10-12 | larger |
| Nominal height in m | Flag size in cm |
| 5 | 120x80 |
| 6 | 150x120 |
| 7 | 180x120 |
| 8 | 200x120 |
| 9 | 225x150 |
| 10 | 250x150 |
| 12 | 300x200 |
