You are here: Flagpole range > Aluminium banner poles > Aluminium banner pole TMZ100-SFS, 7 m
Aluminium banner pole TMZ100-SFS, 7 m

Aluminium banner pole TMZ100-SFS, 7 m

Aluminium banner pole TMZ100-SFS, 7 m
Show reviews »
Quality seals and awards
Produktdetails

Key information at a glance

Item no. 8149.13
Hoisting typeInternal halyard
Pole shapecylindrical
MaterialAluminium
Height7 m
Advice by phone
Our hotline is available Mon–Thu 7:30am–5pm and Fri until 12:30pm: Our hotline number
Freight delivery to Germany from €88
Exact price by postcode in the basket · volume discounts on multiple poles
Volume discount on flagpoles from 3 units · details
from 3−2 % from 6−3 % from 9−4 % from 12−5 % from 15−6 % from 20−7 % from 25−8 %
Applies to poles only, delivered to the same unloading point and the same customer. The discount is deducted automatically in the basket.
Your price
net € 838,00 € 997,22
incl. VAT plus Freight costs
Delivery time approx. 10–15 working days
Order the accessories you need at the same time

The ground socket is not included. It is set into the concrete foundation – after which the pole is simply inserted.

Steel centring sleeve for TMZ 100, TMZ100-SFS, TMZ100-KHV Steel centring sleeve for TMZ 100, TMZ100-SFS, TMZ100-KHV
+ 123,76 €
Add to basket now
Response usually within 1 hour (Mon–Fri) · no obligation & free of charge
5-year warranty
Purchase on account for public authorities & municipalities
Buyer protection & secure payment
Payment methods: Visa Mastercard girocard PayPal Klarna Wero
Aluminium banner pole TMZ100-SFS, 7 m
Aluminium banner pole TMZ100-SFS, 7 m Item no. 8149.13
– incl. VAT · incl. accessories
  • Wind-stable, torsion-resistant construction for permanent outdoor use
  • Anodised aluminium – corrosion-free, UV- and weather-resistant
  • 5-year warranty · Made in Germany
  • As a complete set: ground socket & accessories can be ordered with it

Aluminium banner pole TMZ100-SFS, 7 m has the item number 8149.13 and is characterised by nominal height 7 m, internal halyard, cylindrical design. Prices start at 997,22 € incl. VAT.

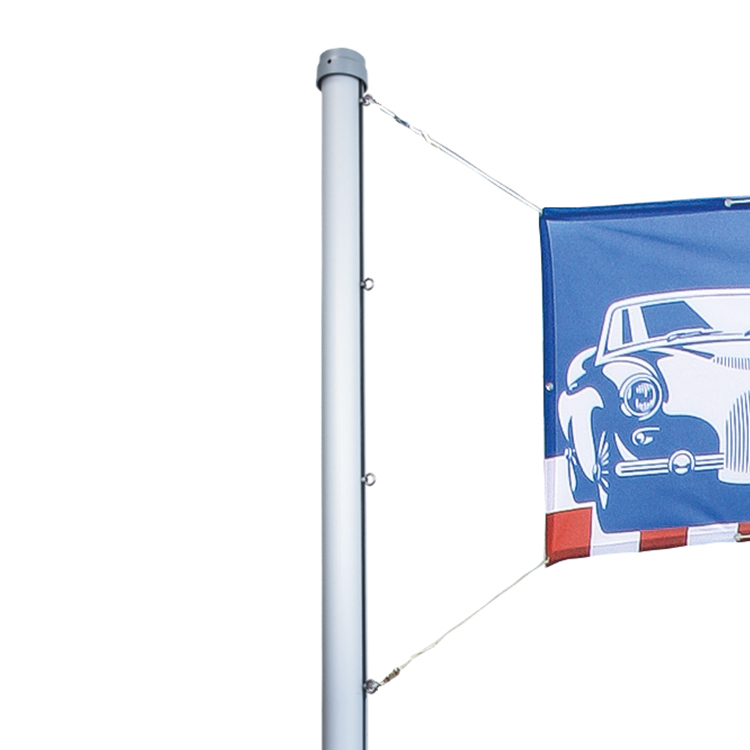

Designed for 7 m of visible height, the pole is the typical choice for company entrances, car dealerships and club grounds. Suitable flags are portrait formats from 350 to 500 cm in length, or landscape flags around 150 × 250 cm. The pole is set into a ground socket in a concrete foundation; the 7 m nominal height is measured from ground level. You will find the matching foundation plan in the „Instructions“ tab. The internal halyard runs protected inside the pole and makes unauthorised lowering of the flag more difficult.

Aluminium banner pole TMZ100-SFS

Nominal height 7.00 m, total length 7.80 m

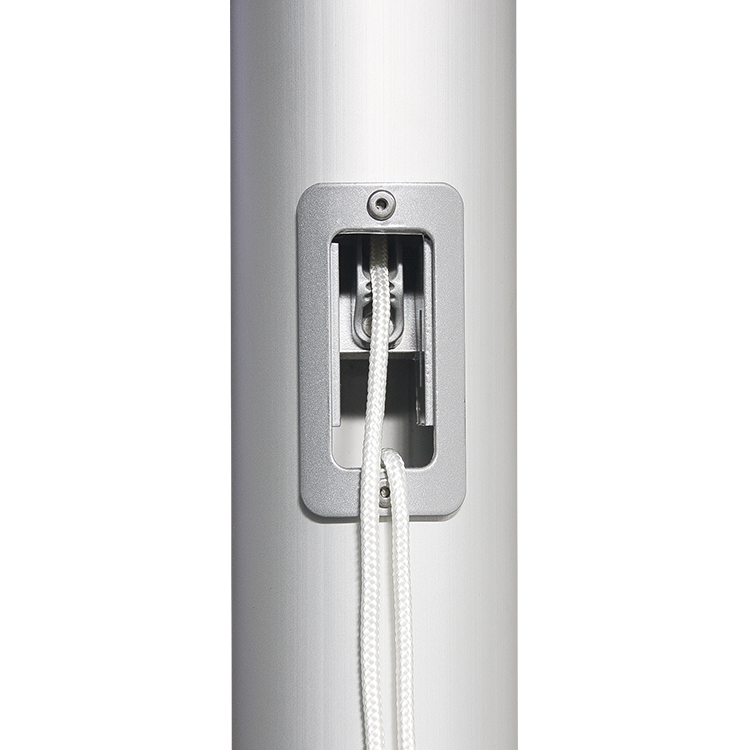

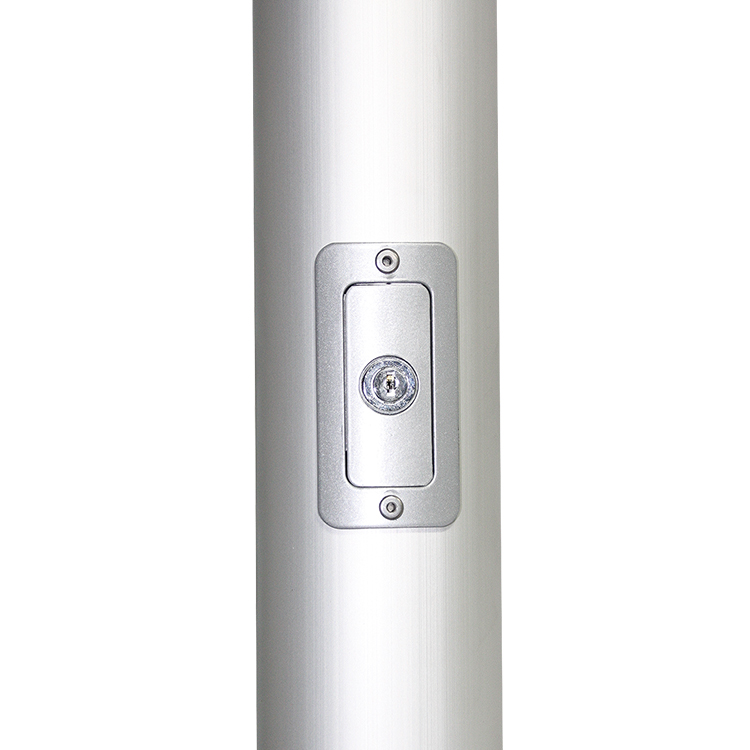

Cylindrical pole tube with groove, D = 100 x 5 mm Material EN AW-6082T6, silver anodised PE eyelet strip 1.00 m, 4 ring eyelets M8/A2 Hoisting device as an internal halyard with PES rope, SFS control housing with lockable door for a max. banner area of 5.00 x 0.60 m (3.00 m²) at 40% wind permeability and a pole-to-pole spacing of max. 9.00 m Pole base with internal steel tube reinforcement, Pole installed in a galvanised steel centring sleeve

Frequently asked questions about this pole

Foundation plan for this pole (PDF) Dimensions of the concrete foundation, installation depth of the ground socket and concrete grade – ready to print for your groundworks contractor.
Operation & maintenance The assembly and operating instructions supplied with the pole are authoritative. For guidance: the wind strength above which the flag should be taken down and how to bring it in gently and store it. Visually inspect the rope, pulley, ground socket and pole base regularly, and additionally after a storm.

Key technical data

Pole tube
Ø 100 mm, wall thickness 5.0 mm
How large do the foundations need to be?
You will find the exact dimensions on the last page of our brochure >> to the brochure
Up to what wind load are banner poles suitable?
Minimum stability up to wind force 9 Bft = 88 km/h
Do flagpoles need a foundation?
Yes, flagpoles should always have a foundation. As a rule, a ground socket is set in concrete and the flagpole is then simply inserted into it. This means the pole can easily be removed from the socket again at any time.
Which concrete is needed for the foundation?
Concrete C 25/30 – you will also find this information on the foundation plan. Concrete of grade C 25/30 is available from specialist suppliers (concrete plants, builders' merchants).
Do the foundation and the flagpole have to be installed by a specialist company?
With a little practical skill, any DIY enthusiast can install the foundation and the flagpole themselves following the instructions supplied. It is not strictly necessary for this to be done by a specialist company.
What are the advantages of an internal hoisting mechanism?
Flag and pole are considerably better protected against theft and vandalism. Poles with an internal hoisting mechanism are often more convenient to operate as well (e.g. by winch). It is less susceptible to dirt and moisture. The internal halyard is also quieter, since it cannot knock against the pole.

Question not listed? All questions & answers · or call us: 09833 98894-0
