10 m elliptical rotating pole, EA-K120K-10, internal halyard, bracket/gallows arm, tilting mount, crank has the item number 8515.76 and is characterised by nominal height 10 m, outrigger, elliptical design. The variant can be supplied from 1.461,32 € incl. VAT.
At 10 m of visible pole height, the pole is designed for prestigious locations, industrial sites and groups of poles. For poles of this height we recommend portrait flags of roughly 500 to 700 cm in length – as a rule of thumb, a flag should be about half to two thirds of the nominal height. Installation requires a foundation with a ground socket – the 10 m nominal height refers to the visible section above ground level. You will find the matching foundation plan in the „Instructions“ tab. The outrigger arm holds the flag clear of the pole so it stays readable even when there is no wind.
Flagpoles with 360° rotating bearing and hoistable bracket/gallows arm.
Aluminium pole tubes with an elliptical cross-section, optimised structurally and aerodynamically. Besides the greatest possible stability, this tube shape has the advantage of the lowest possible noise emission in strong winds.
Thanks to the structural and aerodynamic optimisation of the pole tubes, the poles guarantee stability in accordance with DIN EN 1991-1-4/NA for wind zone I when flying a flag, up to a nominal height of 12 m. For nominal heights up to and including 9 m, stability for wind zone 2 is guaranteed as standard – likewise when flying a flag.
The benefit of the rotating bearing of the pole tubes is that both the flag and the hoisting device turn "out of the wind" at the same time. This prevents the flag from wrapping or tangling in turbulent wind and rain.
Nominal height / total length 10.00 m

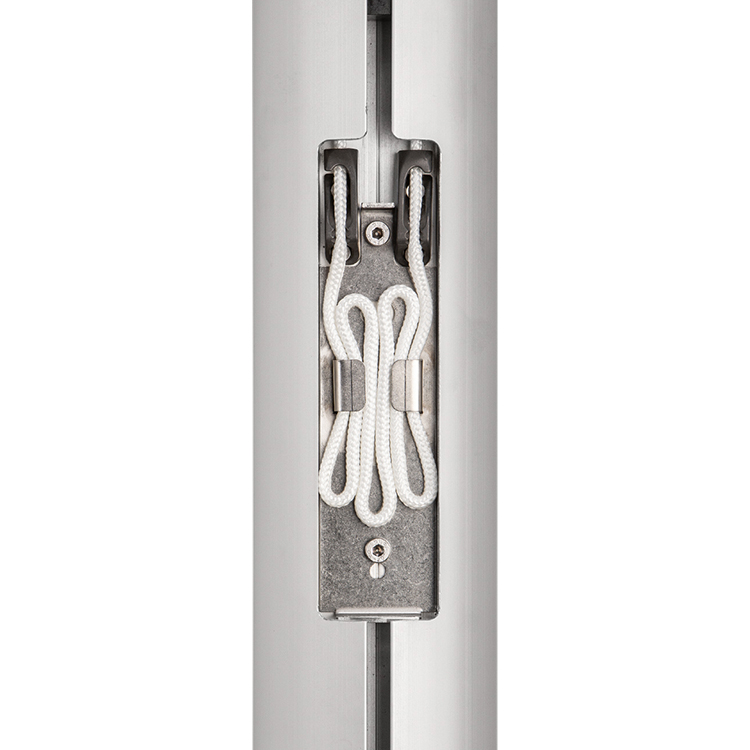

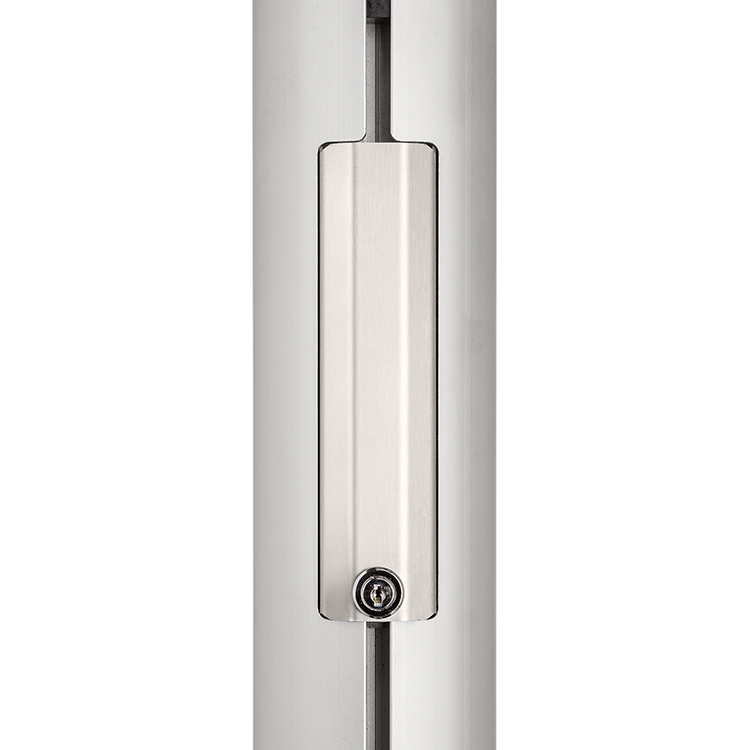

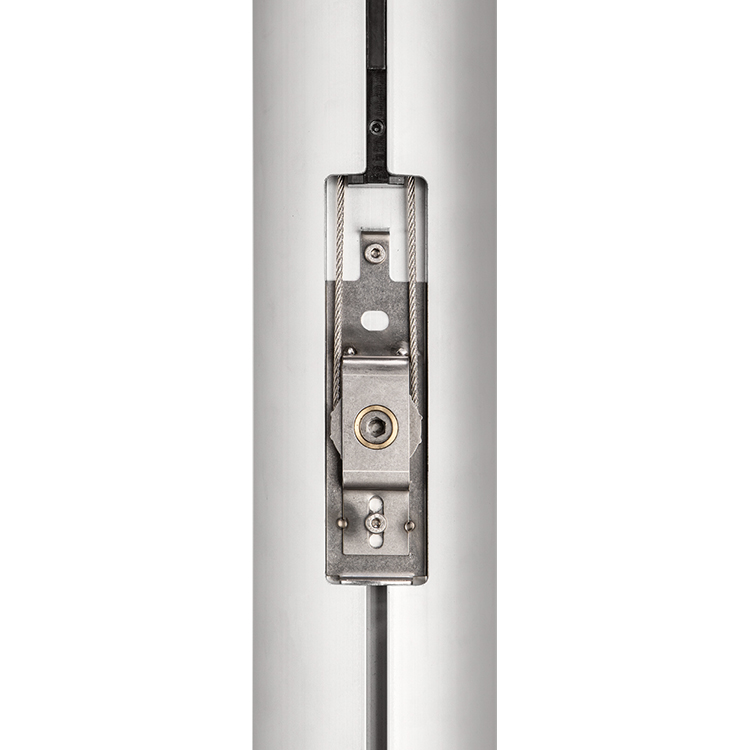

Aluminium pole tube, material EN AW-6082T6, silver anodised E6/EV1, profile cross-section 120 x 140 mm, elliptical, aerodynamically and structurally optimised, with a moulded groove for the internal hoisting device, FlagLift crank hoisting device, self-locking, removable hand crank, stainless steel halyard, lockable with a flush-fitting stainless steel cover with lever lock, pull slide, flag fabric holders (6 pcs.), telescopic bracket 100/160 cm, keder flags can be hoisted, pole tube mounted on a flange shaft with rotating bearing, triangular base flange size 314, safety hinge, base section with 3 adjusting anchors M16 for vertical pole installation, pole tube stable when flying a flag in accordance with DIN EN 1991-1-4/NA wind zone I, pole weight 82 kg
Nominal height (NH): 10.00 m, total length (GL): 10.00 m, profile cross-section: 120/140 Stability in accordance with EN 1991-1-4/NA is met

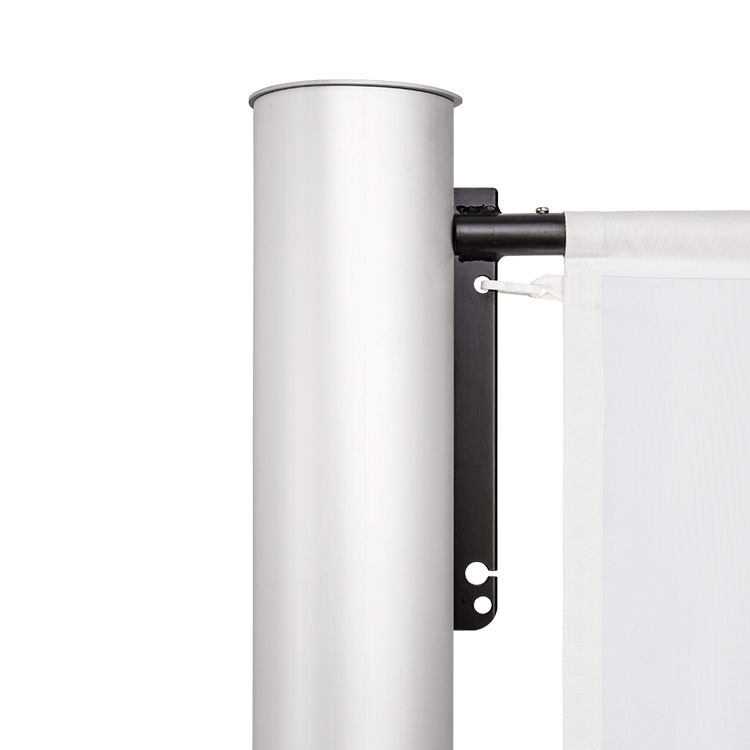

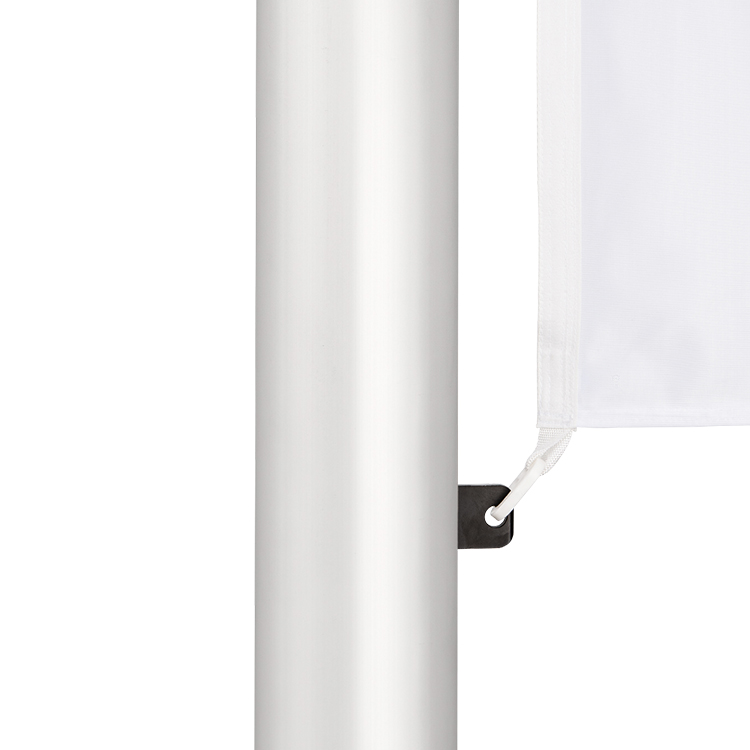

Side tape with hooks. Hollow hem along the top edge of the fabric, Ø 30 mm, open on both sides. The topmost hook must be sewn on directly below the hollow hem. Hook spacing max. 1.00 m, max. fabric width 1.50 x 4 m. The flag is slid onto the bracket tube by its hollow hem. The topmost flag carabiner hooks into the hole of the long slide, the remaining carabiners into the eyelets of the flag fabric holders. The flag weight with stainless steel carabiner is hooked into the lowest flag fabric holder and thus prevents the flag from riding up in gusts.
Tilting mount, flange shaft on anchor cage, safety hinge, adjusting bolt
With a first order this accessory is already included in the set – you do not need to order it separately.
| Nominal height in m | Flag size in cm |
| 5 | 80x200 |
| 6 | 100x300 |
| 7 | 150x350 |
| 8 | 100x400 |
| 9 | 120x500 |
| 10-12 | larger |
| Nominal height in m | Flag size in cm |
| 5 | 120x80 |
| 6 | 150x120 |
| 7 | 180x120 |
| 8 | 200x120 |
| 9 | 225x150 |
| 10 | 250x150 |
| 12 | 300x200 |
Germany is divided into four wind zones under DIN EN 1991-1-4/NA. What matters is the basic wind velocity vb,0 at your installation site:
| Wind zone | vb,0 | approx. equals | typical location |
|---|---|---|---|
| Wind zone 1 | 22.5 m/s | 81 km/h | inland southern and central Germany |
| Wind zone 2 | 25.0 m/s | 90 km/h | large parts of central and eastern Germany |
| Wind zone 3 | 27.5 m/s | 99 km/h | inland northern Germany, coastal hinterland |
| Wind zone 4 | 30.0 m/s | 108 km/h | North Sea and Baltic coasts and islands |
Which wind zone applies to me? The classification follows the district or independent city. You will find the full map here:
» Download the German wind zone map as a PDF
What does the figure on the product page mean? In the technical data of our poles you will find a statement such as "without flag to DIN EN 1991-1-4/NA wind zone I". This is the structural verification of the pole tube – it states up to which wind zone the pole has been verified by calculation without a flag. This figure is not an exclusion criterion for higher wind zones, but the basis for the design.
I live in wind zone 2, 3 or 4 – what now? Then the configuration is decisive: the type of ground fixing (ground socket or tilting mount), foundation size, pole height and above all flag size. The same pole can often be used in a higher wind zone with a different fixing or a smaller flag. On several of our series, stability up to a nominal height of 9 m is provided as standard for wind zone 2 as well.
Please ask us: tell us the installation site (postcode), the pole height you want and the flag size – we will check suitability for your wind zone and tell you the right configuration. Telephone +49 9833 98894-0 or use our contact form.
Please note: stability at a specific site is always governed by the individual verification to DIN EN 1991-1-4/NA, taking into account terrain category, surrounding buildings and foundation. The flag must be taken down when a storm warning is issued.
Question not listed? All questions & answers · or call us: 09833 98894-0
