8 m tapered rotating pole, KA-W-8, internal halyard, outrigger / gallows arm

8 m tapered rotating pole, KA-W-8, internal halyard, outrigger / gallows arm has the item number 8121.13 and is characterised by nominal height 8 m, outrigger, tapered design. The variant can be supplied from 1.291,15 € incl. VAT.

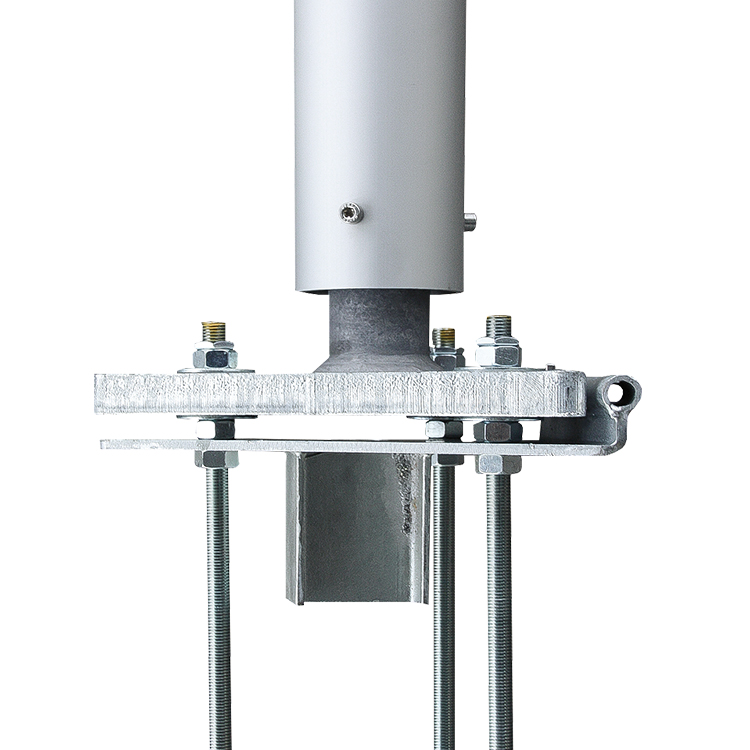

At 8 m of visible pole height, the pole remains highly visible even across larger commercial sites and car parks. For poles of this height we recommend portrait flags of roughly 400 to 550 cm in length – as a rule of thumb, a flag should be about half to two thirds of the nominal height. Installation requires a foundation with a ground socket – the 8 m nominal height refers to the visible section above ground level. You will find the matching foundation plan in the „Instructions“ tab. The outrigger arm holds the flag clear of the pole so it stays readable even when there is no wind.

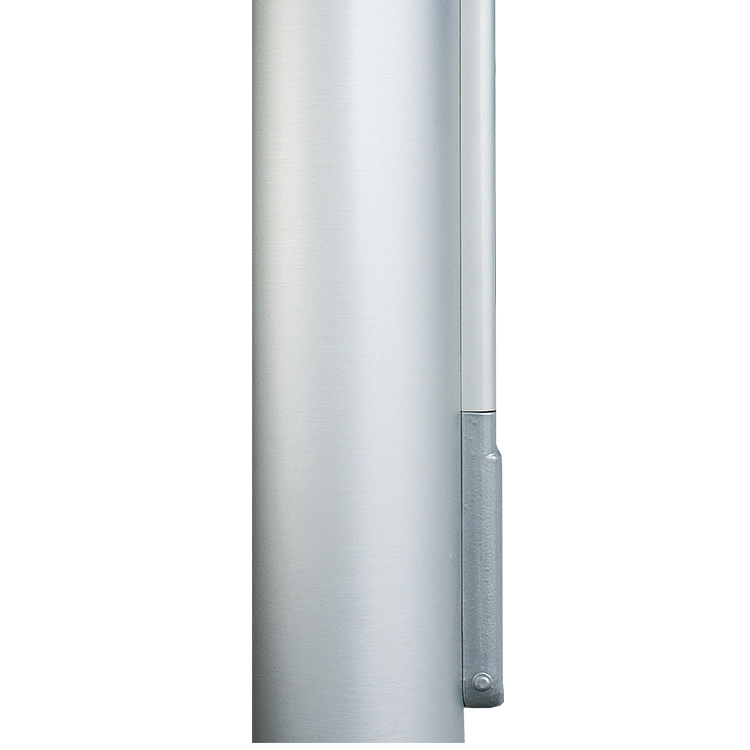

Conical pole tube, mounted so that it rotates 360 degrees. Hoistable telescopic bracket for a max. flag width of 1.50 m. Concealed hoisting device in a mounted C-rail. Sturdy, absolutely reliable and convenient flag hoisting system. Lasting stability thanks to a pole tube in high-grade aluminium alloy EN AW-6063T66 combined with large tube cross-sections and additional internal reinforcement in the area of the rotating bearing. Durable, attractive looks thanks to silver anodising of the pole tube, minimum layer thickness 20 my to the Euras standard. C-rail as an extruded aluminium profile, anodised in the colour of the pole tube. Maximum theft protection thanks to a lockable cover. Rotating bearing using maintenance-free ball bearings and special bushings, plug-in shaft in ST50K material with the highest possible strength.

Equipment:

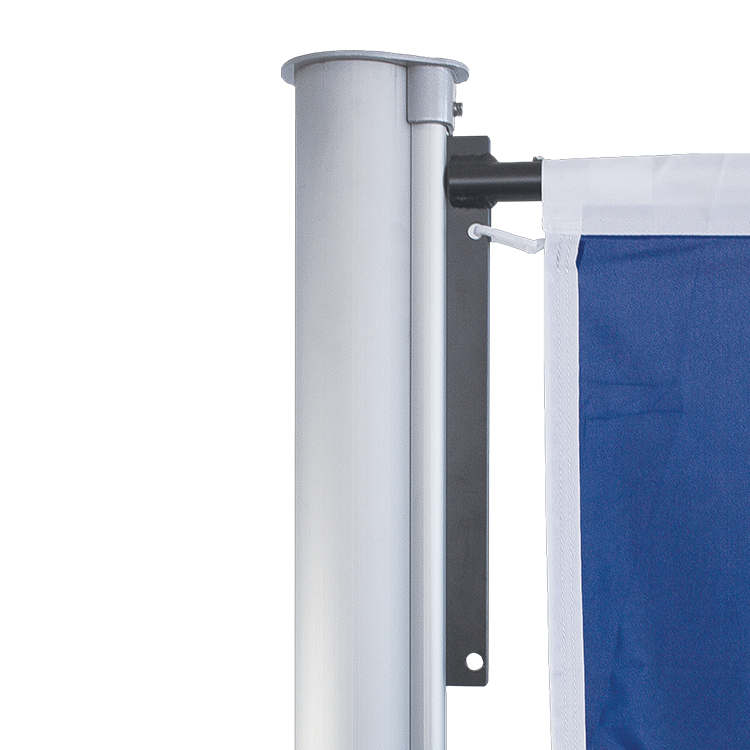

Elegant top cap with a housing attached at the side for the pulley. Top cap in aluminium, grey plastic-coated / mounted C-rail in aluminium. Long slide with removable telescopic bracket in aluminium, silver anodised, Ø 25/20 mm, infinitely adjustable from 1.00 to 1.60 m / perlon halyard 5 mm, with 5 flag fabric holders / flag weight with stainless steel carabiner / rotating bearing with encapsulated ball bearing, permanently maintenance-free / cleat with fitted cover, lockable

Technical data:
Nominal height (NH): 8.00 m, total length (GL): 8.00 m, Ø at top: 76 mm, Ø at bottom: 135 mm
Stability in accordance with EN 1991-1-4/NA is met

Flag finishing:

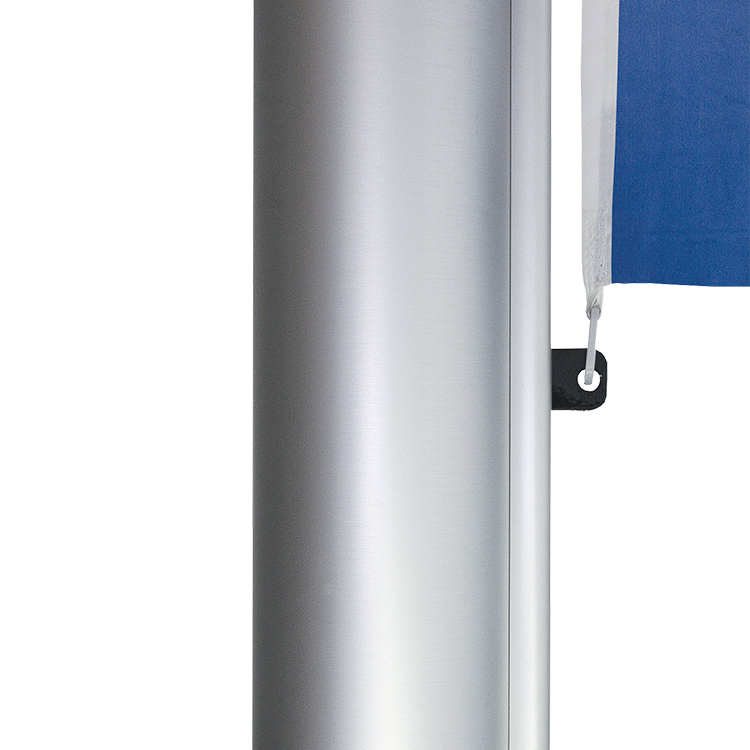

Side tape with hooks. Hollow hem along the top edge of the fabric, Ø 30 mm, open on both sides. The topmost hook must be sewn on directly below the hollow hem. Hook spacing max. 1.00 m, max. fabric width 1.50 x 4 m. The flag is slid onto the bracket tube by its hollow hem. The topmost flag carabiner hooks into the hole of the long slide, the remaining carabiners into the eyelets of the flag fabric holders. The flag weight with stainless steel carabiner is hooked into the lowest flag fabric holder and thus prevents the flag from riding up in gusts.

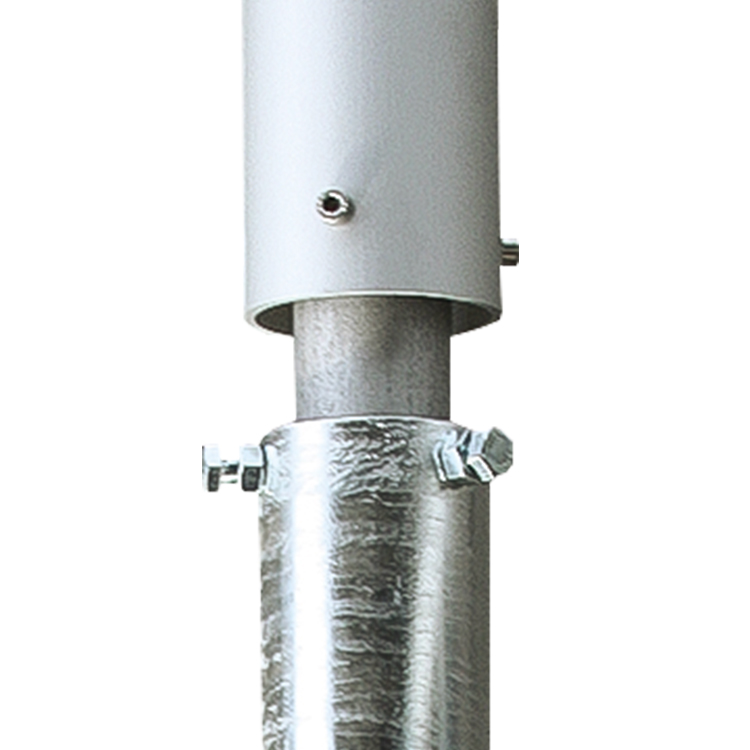

The steel ground socket is included in the price.
